Driver Side Door Switch Inspection

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Use an ohmmeter to check switch for continuity. If found defective, replace switch.

Driver side door switch specification

OFF position (Door closed): No continuity

ON position (Door open): Continuity

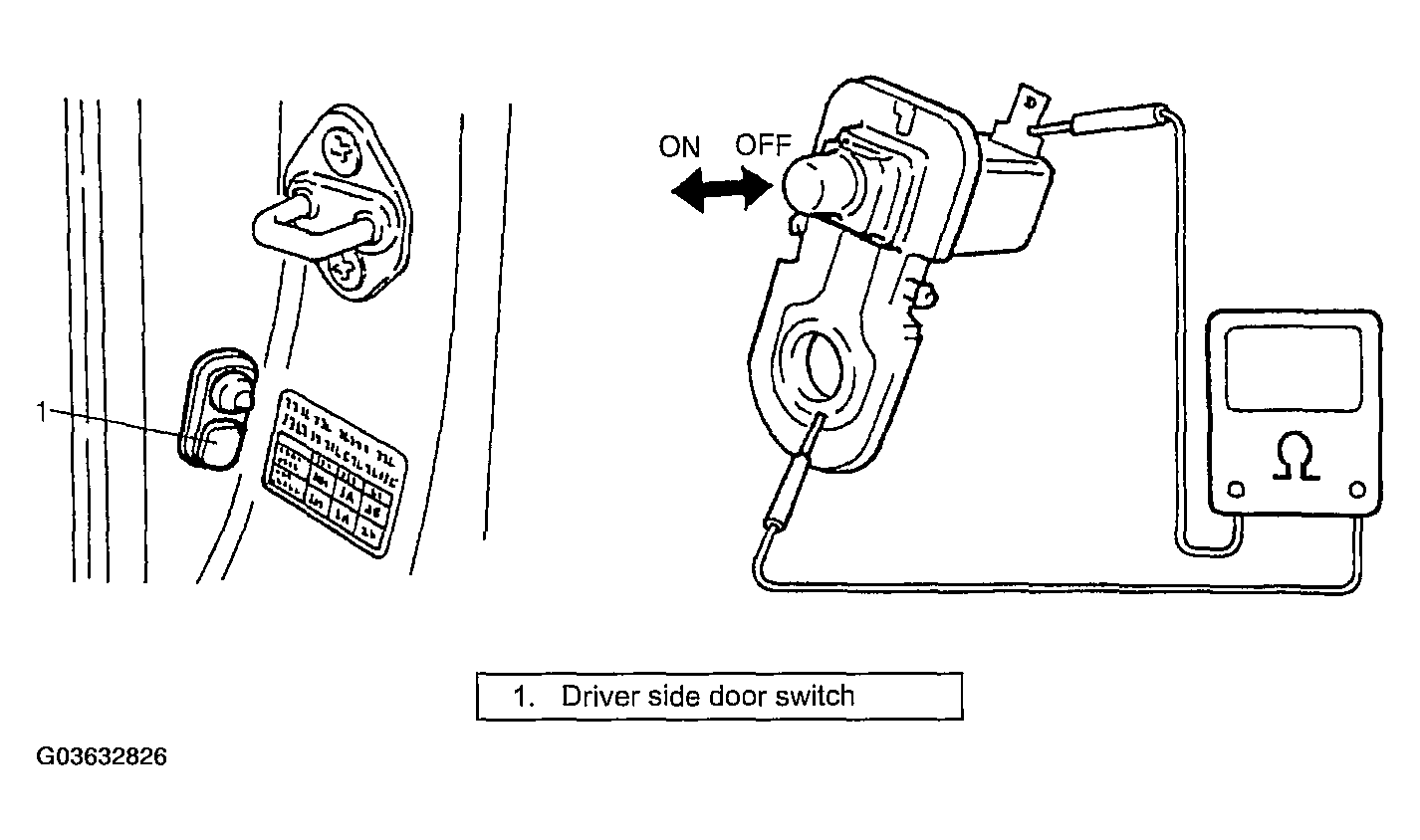

Fig 1: Inspecting Driver Side Door Switch
G03632826Courtesy of SUZUKI OF AMERICA CORP.
