Brake Fluid Level Switch On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Use an ohmmeter to check switch for continuity. If found defective, replace switch (reservoir).

Brake fluid level switch specification

OFF position (float up): No continuity

ON position (float down): Continuity

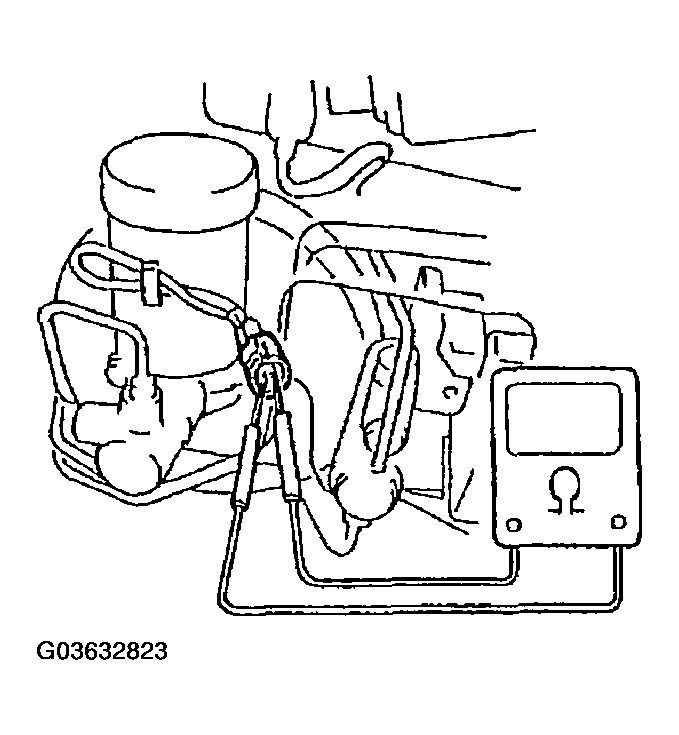

Fig 1: Inspecting Brake Fluid Level Switch
G03632823Courtesy of SUZUKI OF AMERICA CORP.
