Magnet Clutch Removal and Installation: Removal

1. Remove compressor from vehicle. Refer to "COMPRESSOR REMOVAL AND INSTALLATION:  ".
2. Fix armature plate (1) with special tool (A) and remove armature plate bolt and washer.

   Special tool

   (A): 09991-06020

   NOTE: Do not reuse armature plate bolt.
   Fig 1: Removing Armature Plate Bolt And Washer

   Courtesy of SUZUKI OF AMERICA CORP.
3. Using special tool (B), remove armature plate (1).

   Special tool

   (B): 09991-06030

   Fig 2: Removing Armature Plate Using Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove shims from shaft.

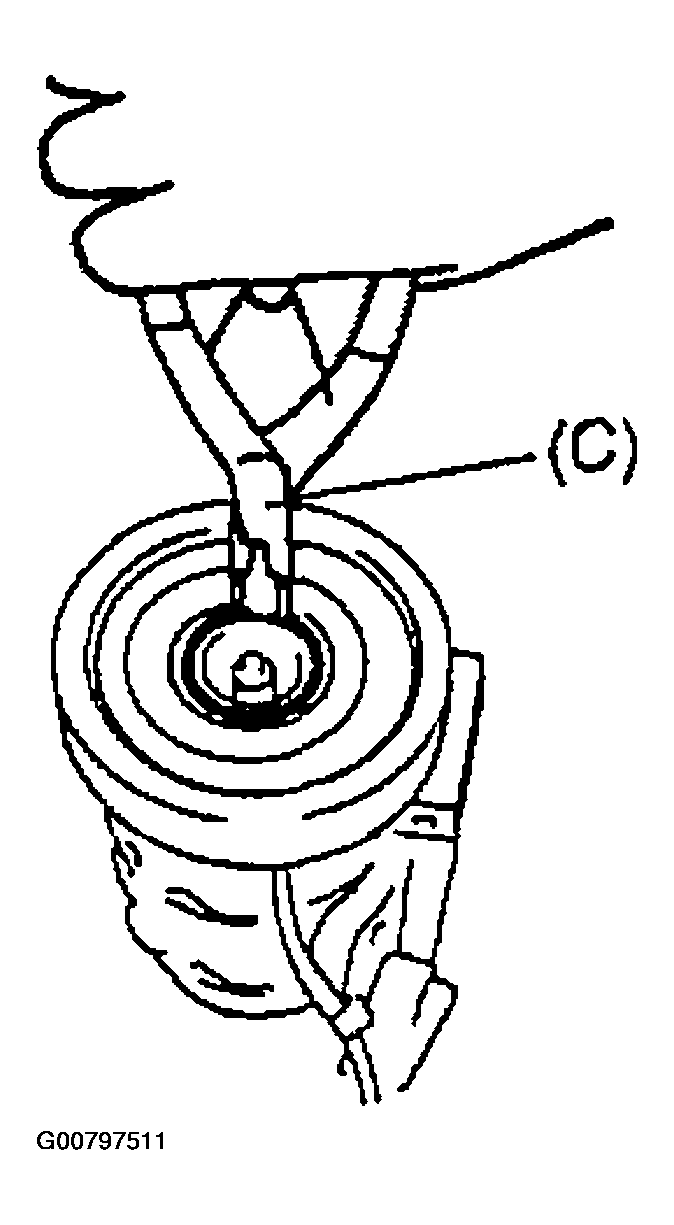

5. Using special tool (C), remove circlip.

   Special tool

   (C): 09900-06107

   Fig 3: Removing Circlip Using Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.
6. Remove magnet clutch lead wire clamp screw, and remove magnet clutch read wire ground terminal.

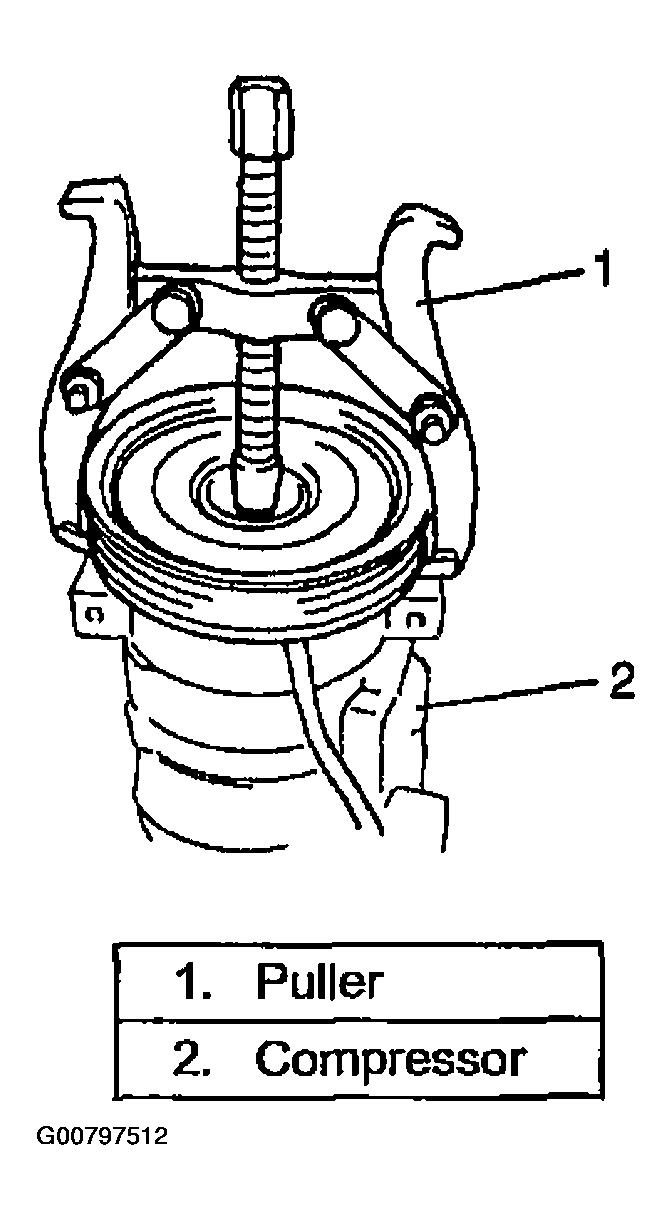

7. Remove magnet clutch with puller.
   NOTE: Be careful not to damage pulley when tapping magnet clutch.
   Fig 4: Removing Magnet Clutch Using Puller

   Courtesy of SUZUKI OF AMERICA CORP.

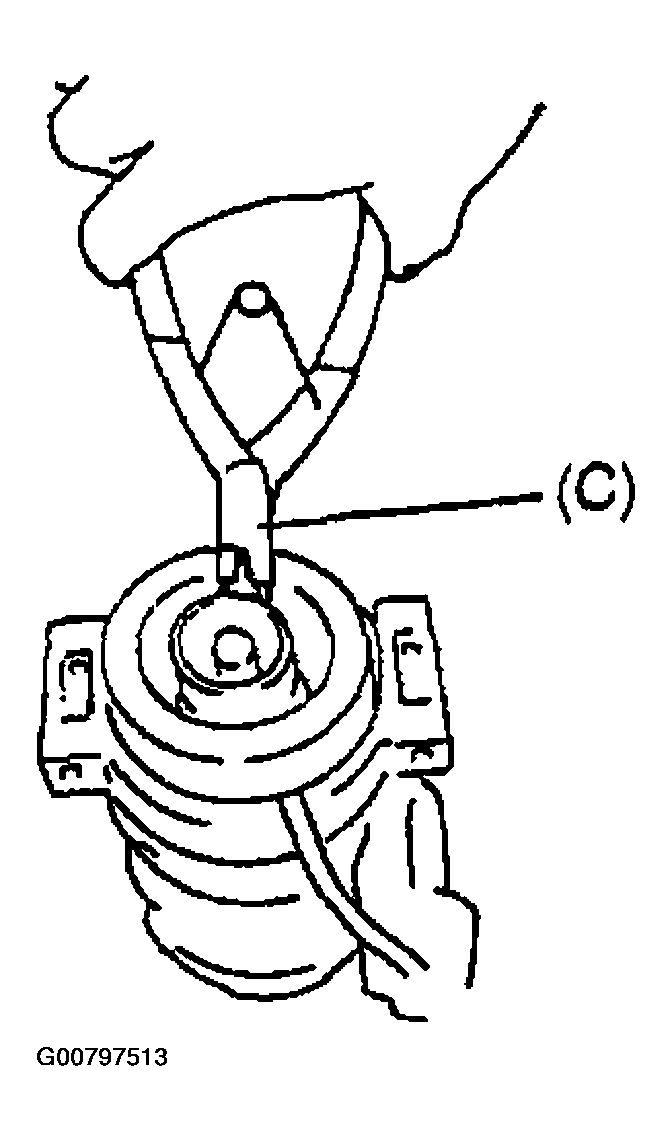

8. Remove magnet clutch coil.

Special tool

(C): 09900-06107

Fig 5: Removing Magnet Clutch Coil

Courtesy of SUZUKI OF AMERICA CORP.
