Desiccant Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove condenser assembly (1) from vehicle referring to A/C CONDENSER ASSEMBLY REMOVAL AND INSTALLATION .

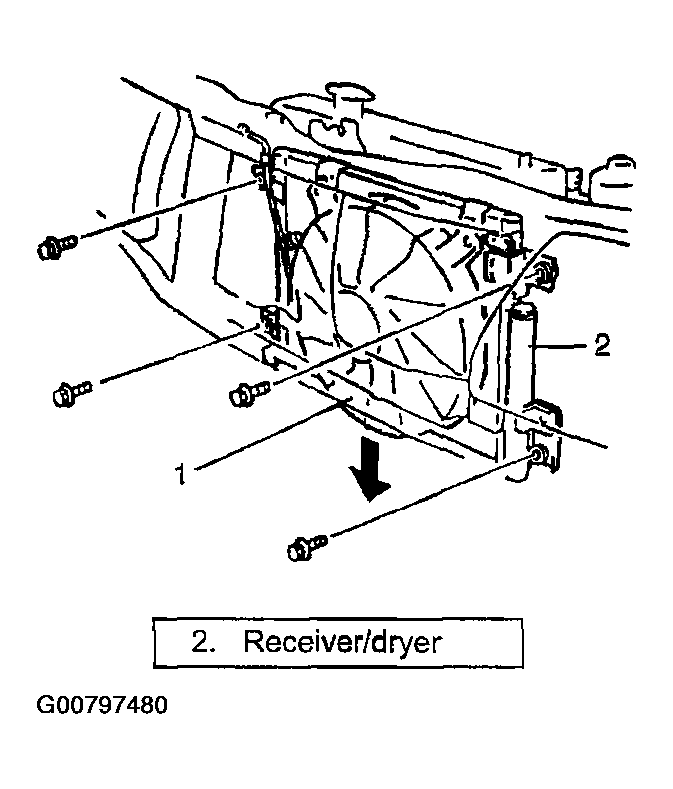

Fig 1: Removing Condenser Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the cap using a hexagon wrench.
Remove the filter (1) from the receiver/dryer (2).

Fig 2: Removing Filter From Receiver/Dryer
Courtesy of SUZUKI OF AMERICA CORP.
Remove desiccant (1) using pliers (2).

Fig 3: Removing Desiccant Using Pliers

Courtesy of SUZUKI OF AMERICA CORP.
