Propeller Shaft Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure to install propeller shaft.

Use the following specification to torque universal joint flange bolts (1) (and center support bolts (2) (if equipped)).
Tightening torque

Universal joint flange bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)

Center support bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)

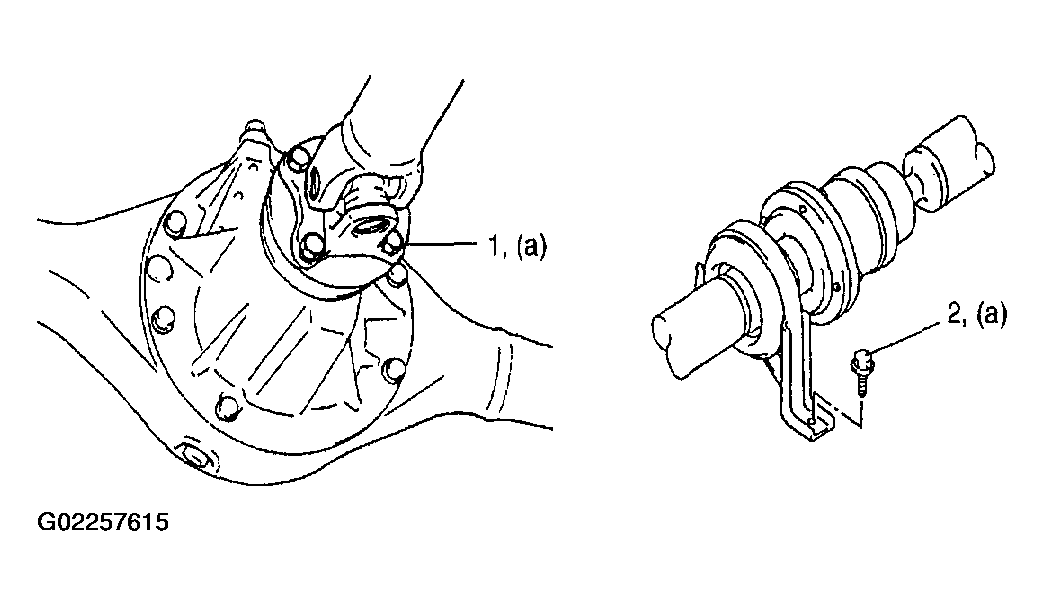

Fig 1: Tightening Universal Joint Flange Bolts
Courtesy of SUZUKI OF AMERICA CORP.
When installing propeller shaft, align the match marks. Otherwise, vibration may occur during driving.
NOTE: If transfer oil was drained for front propeller shaft removal, pour specified gear oil into transfer case to specified level.
