Differential Case Assembly

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

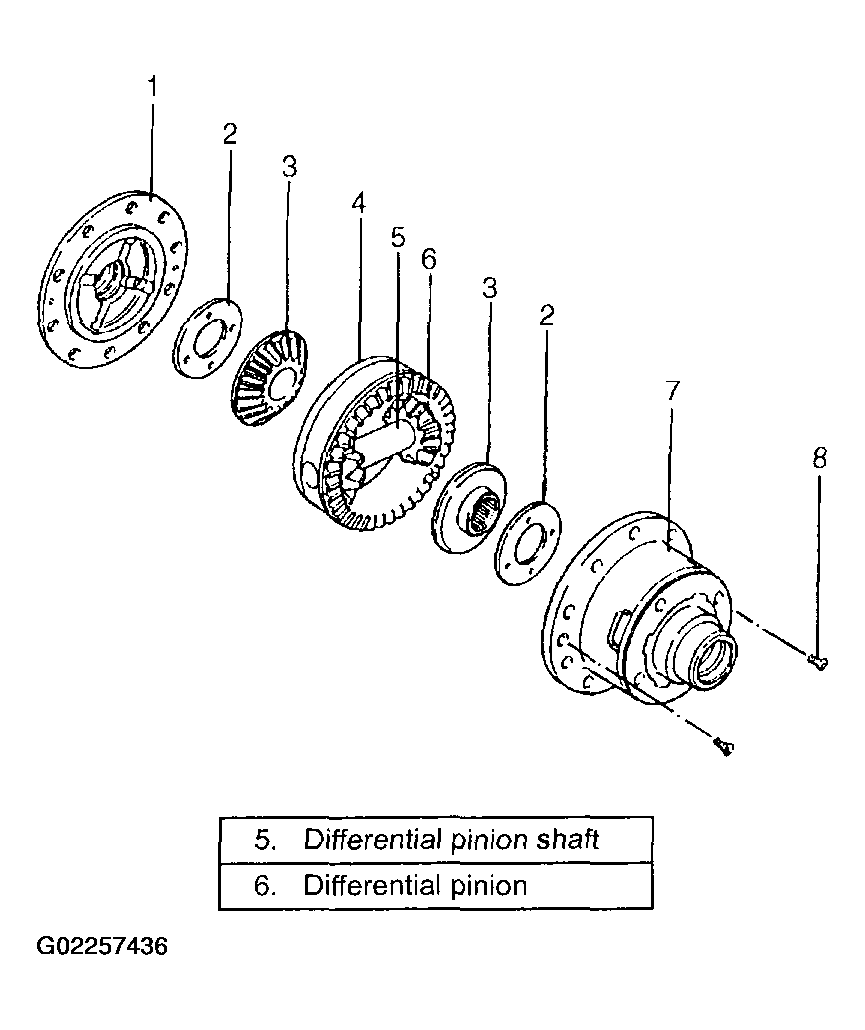

Install differential gears (3), free axle hub (4) and washers (2) to left case (7).
Install left case to right case (1) and tighten screws (8).

Fig 1: Installing Differential Gears, Free Axle Hub & Washers To Left Case
Courtesy of SUZUKI OF AMERICA CORP.
Put bevel gear (1) on differential case (2) and fasten them with 10 bolts (3) by tightening them to specified torque. Use thread lock cement for 10 bolts (3).
CAUTION: Use of any other bolts than that specified is prohibited.

"A": Thread lock cement 99000-32020

Tightening torque

Drive bevel gear bolt (a): 85 N.m (8.5 kg-m, 61.5 lb-ft)

Fig 2: Putting Bevel Gear On Differential Case
Courtesy of SUZUKI OF AMERICA CORP.

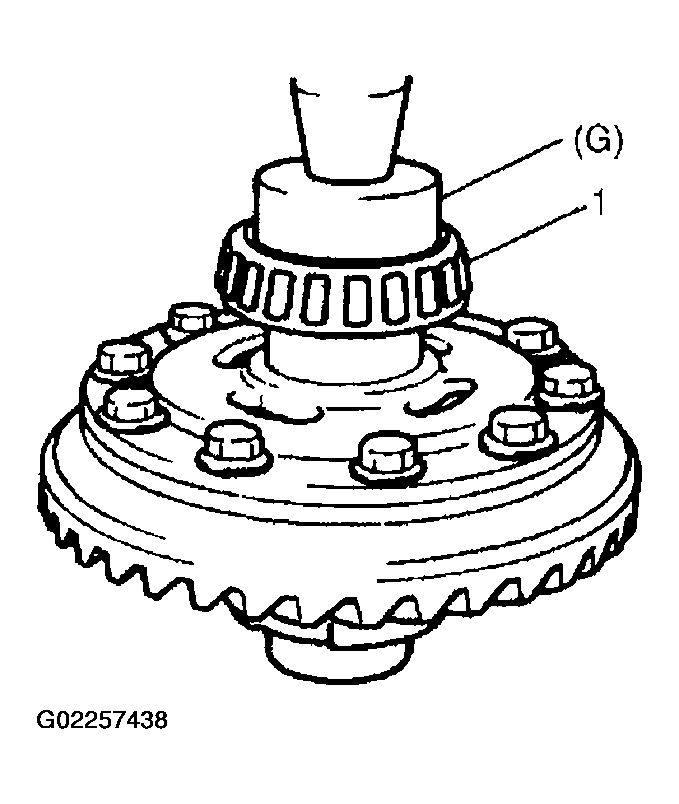

Press-fit side bearing (1) with special tool and hydraulic press.
Special tool

(G): 09944-66020

Fig 3: Press-Fitting Side Bearing With Special Tool & Hydraulic Press
Courtesy of SUZUKI OF AMERICA CORP.
Install actuator (1) to differential case (2).
NOTE: Note that installing direction is as shown in the figure.

Fig 4: Installing Actuator To Differential Case
Courtesy of SUZUKI OF AMERICA CORP.

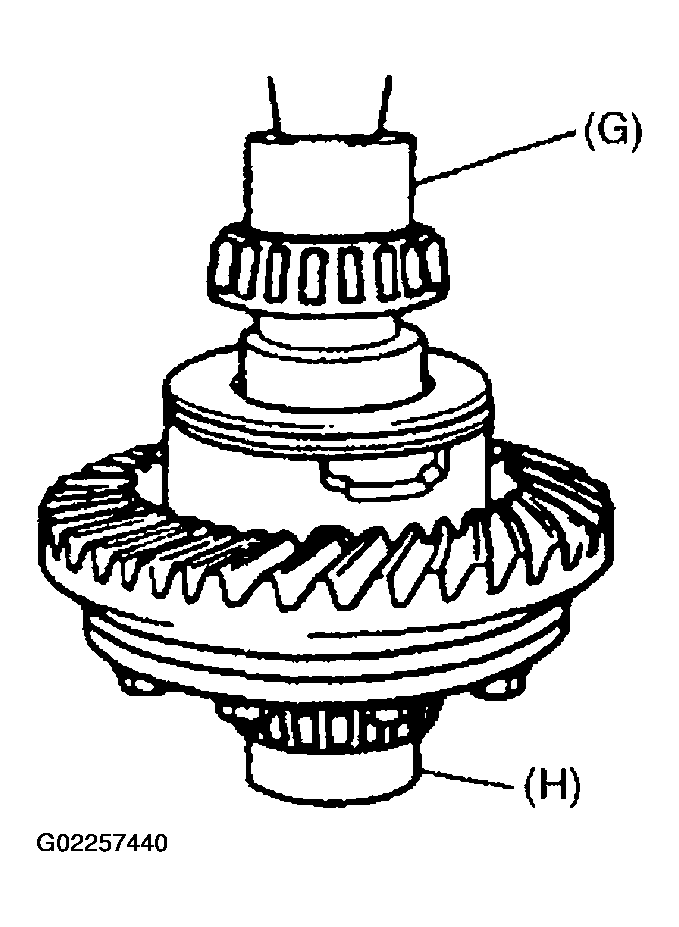

Hold bearing press-fitted in Step 4 with holder and press-fit side bearing on the other side.
NOTE: Be sure to use bearing holder for the purpose of protecting lower bearing.

Special tool

(G): 09944-66020

(H): 09951-16060

Fig 5: Holding Bearing Press-Fitted In With Holder & Side Bearing On Other Side
Courtesy of SUZUKI OF AMERICA CORP.
