Differential Left Case

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check clutch for smooth movement by pushing plate of axle lock clutch fitted to differential left case.

Also, check return spring (1) for settling.

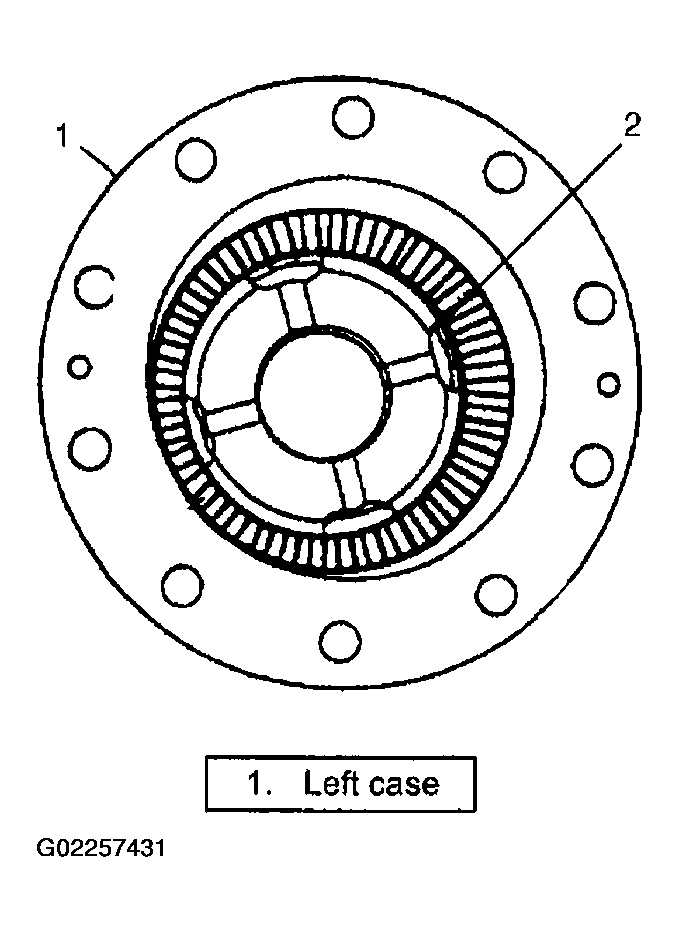

Fig 1: Checking Return Spring For Settling

Courtesy of SUZUKI OF AMERICA CORP.

Check teeth of axle lock clutch (2) fitted to differential right case for wear, damage and any other faulty condition.

Fig 2: Checking Teeth Of Axle Lock Clutch Fitted To Differential Right Case For Wear

Courtesy of SUZUKI OF AMERICA CORP.
