Tire Rotation

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

To equalize wear, rotate tires periodically as shown in the figure. Refer to "WHEEL REMOVAL AND INSTALLATION:  ".

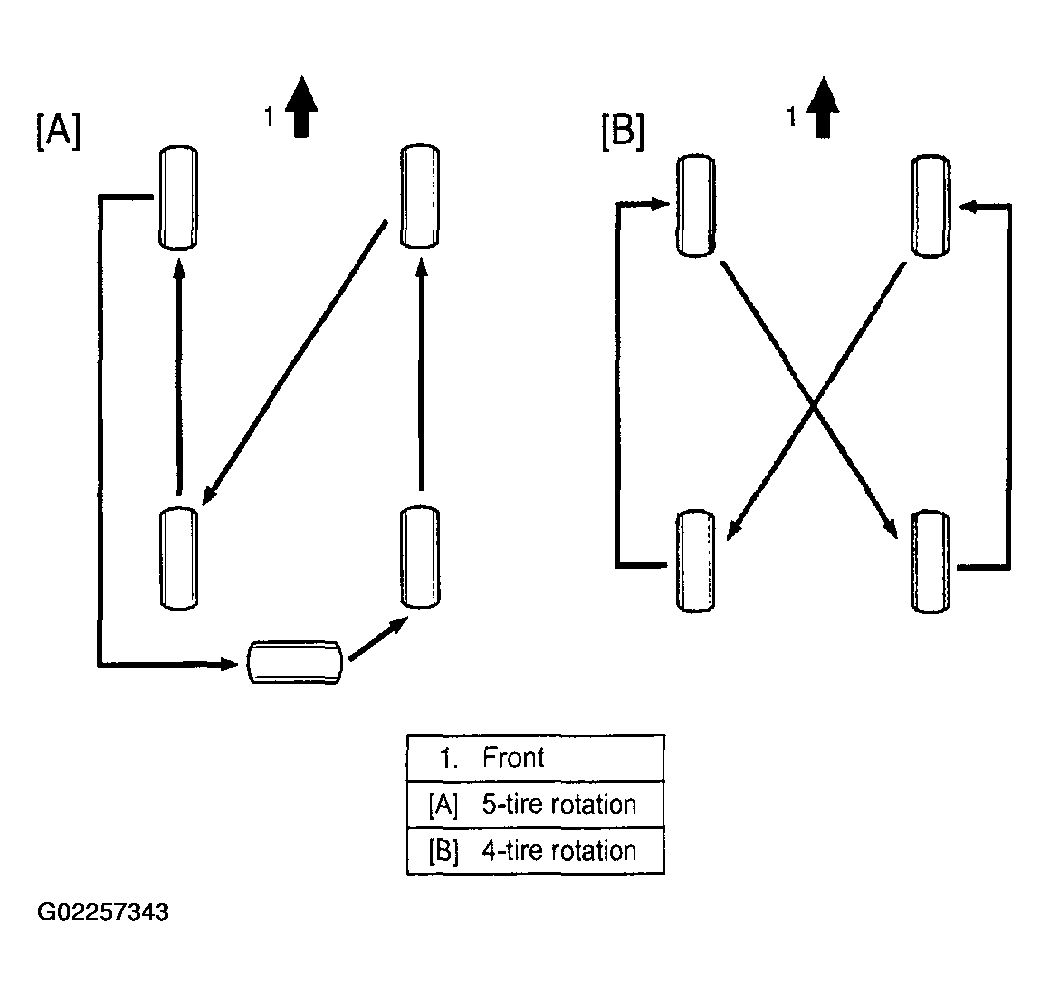

Fig 1: Identifying Tire Rotation
G02257343Courtesy of SUZUKI OF AMERICA CORP.
