Water Pump Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Drain engine oil.
- Drain coolant.
- Remove timing chain cover. Refer to TIMING CHAIN COVER REMOVAL AND INSTALLATION .

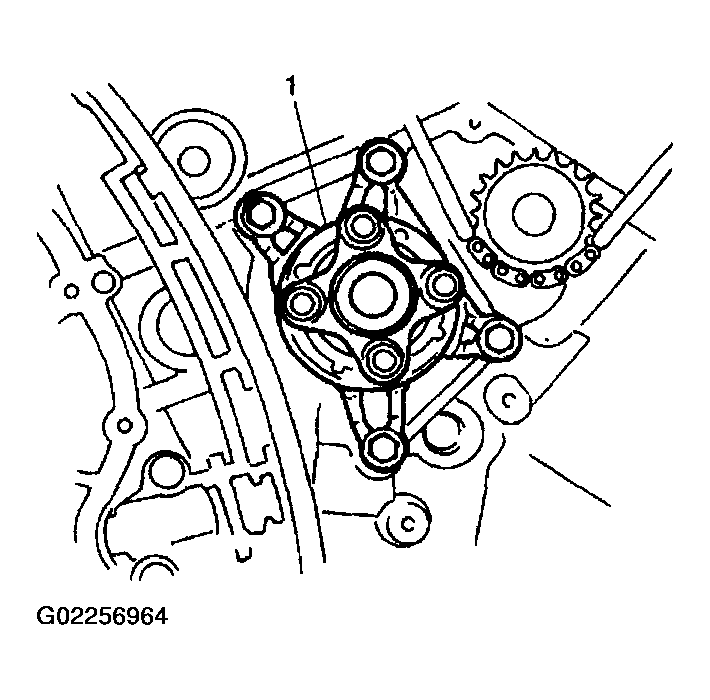

- Remove water pump assembly (1).
