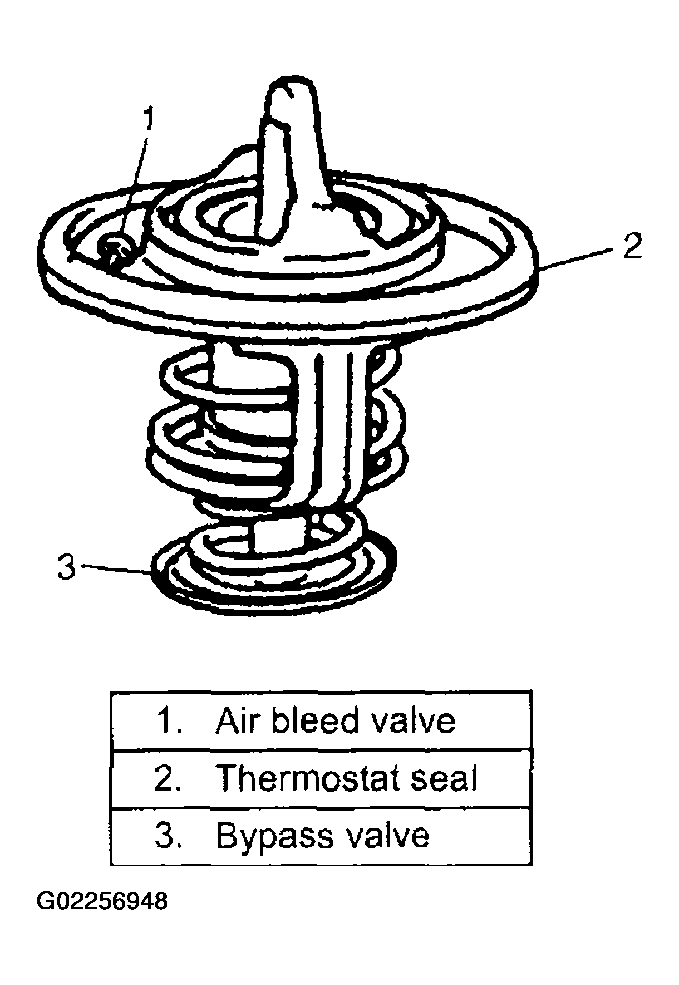

Thermostat Description
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Temperature at which valve begins to open
80-84 °C (176-183°F)
Temperature at which valve becomes fully open
95 °C (203°F)
Valve lift
More than 8 mm (0.315 in.) at 95 °C (203 °F)
Courtesy of SUZUKI OF AMERICA CORP.
