Valve specification

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Valve Specifications Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Measuring Valve Head Thickness

Courtesy of SUZUKI OF AMERICA CORP.

Inspect valve stem end face for pitting and wear. If pitting or wear is found there, valve stem end may be resurfaced, but not too much to grind off its chamber. When it is worn out too much that its chamber is gone, replace valve.

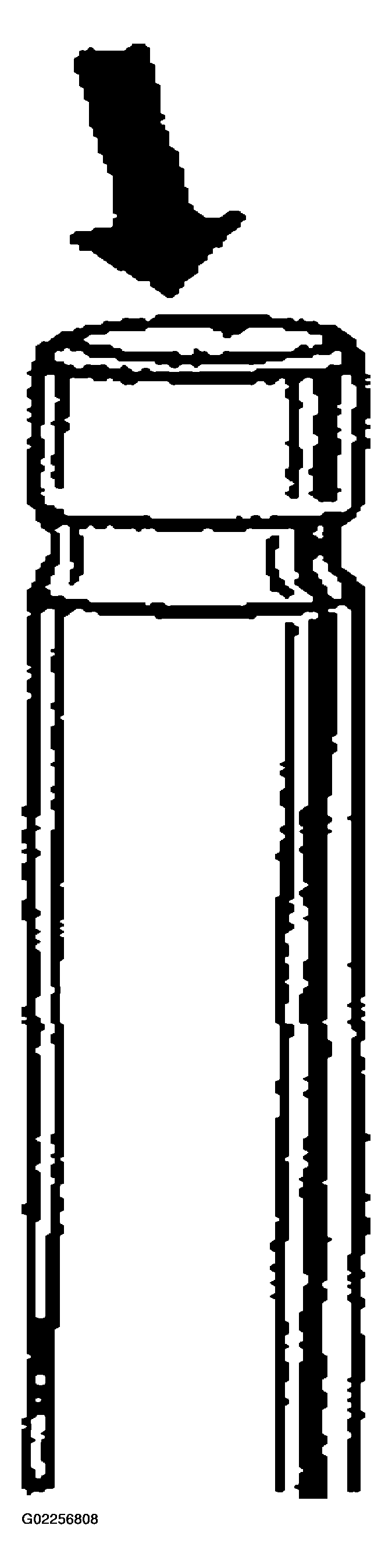

Fig 3: Inspecting Valve Stem End Face For Pitting & Wear
Courtesy of SUZUKI OF AMERICA CORP.
Check each valve for radial runout with a dial gauge and "V" block.
To check runout, rotate valve slowly. If runout exceeds its limit, replace valve.

Valve head radial runout

Limit: 0.08 mm (0.003 in.)

Fig 4: Checking Valve For Radial Runout With Dial Gauge & "V" Block
Courtesy of SUZUKI OF AMERICA CORP.
Seating contact width
Create contact pattern one each valve in the usual manner, i.e., by giving uniform coat of marking compound to valve seat and by rotatingly tapping seat with valve head. Valve lapper (tool used in valve lapping) must be used. Pattern produced on seating face of valve must be a continuous ring without any break, and the width of pattern must be within specified range.

Standard seating width revealed by contact pattern on valve face

Intake and Exhaust: 1.1 - 1.3 mm (0.0433 - 0.0512 in.)

Fig 5: Measuring Seating Contact Width
Courtesy of SUZUKI OF AMERICA CORP.
Valve seat repair
A valve seat not producing a uniform contact with its valve or showing width of seating contact that is out of specified range must be repaired by regrinding or by cutting and regrinding and finished by lapping.
- Exhaust valve seat:
  Use valve seat cutters (1) to make two cuts as illustrated in the figure. Two cutters must be used: the first for making 15° angle, and the second for making 45° angle. The second cut must be made to produce desired seat width.

  Seat width for exhaust valve seat

  1.1 - 1.3 mm (0.0433 - 0.0512 in.)
- Intake valve seat:
  Use valve seat cutters (1) to make three cuts as illustrated in the figure. Three cutters must be used: the 1st for making 15° angle, the 2nd for making 60° angle, and the 3rd for making 45° angle. The 3rd cut (45°) must be made to produce desired seat width.

  Seat width for intake valve seat

  1.1 - 1.3 mm (0.0433 - 0.0512 in.)

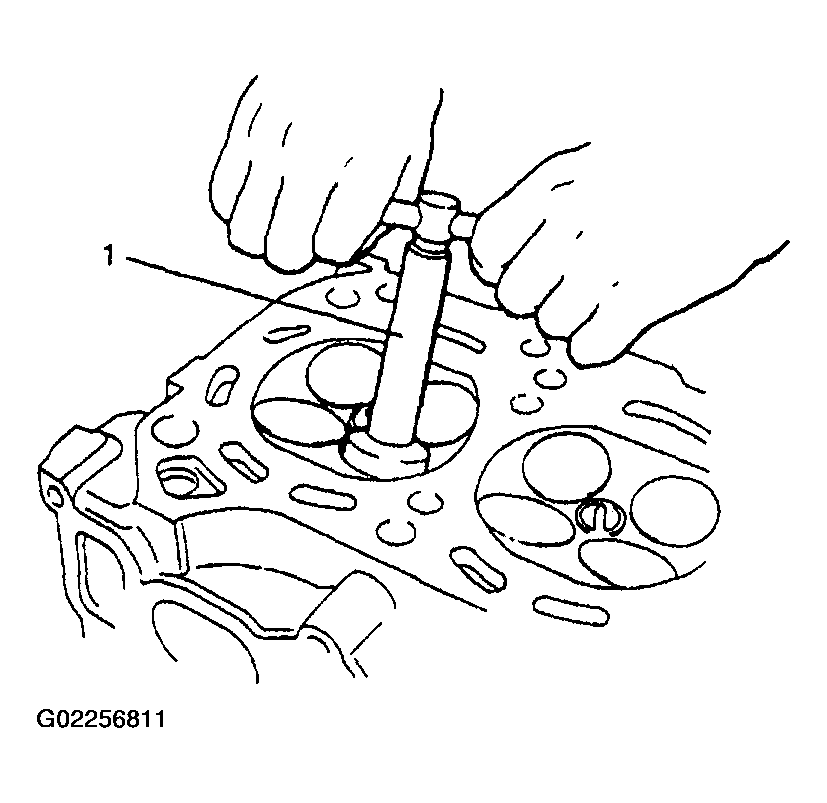

  Fig 6: Making Cuts Using Valve Seat Cutters
  Courtesy of SUZUKI OF AMERICA CORP.
- Valve lapping:
  Lap valve on seat in two steps, first with coarse size lapping compound applied to face and the second with fine-size compound, each time using valve lapper according to usual lapping method.
Fig 7: Measuring Intake & Exhaust Valves
Courtesy of SUZUKI OF AMERICA CORP.
