Main Bearings Inspection: Notes

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before inspecting main bearings, note the following points.

Service main bearings are available in standard size and 0.25 mm (0.0098 in.) undersize, and each of them has 5 kinds of bearings differing in tolerance.
Upper half of bearing (1) has oil groove (2) as shown in figure. Install this half with oil groove toward cylinder block.

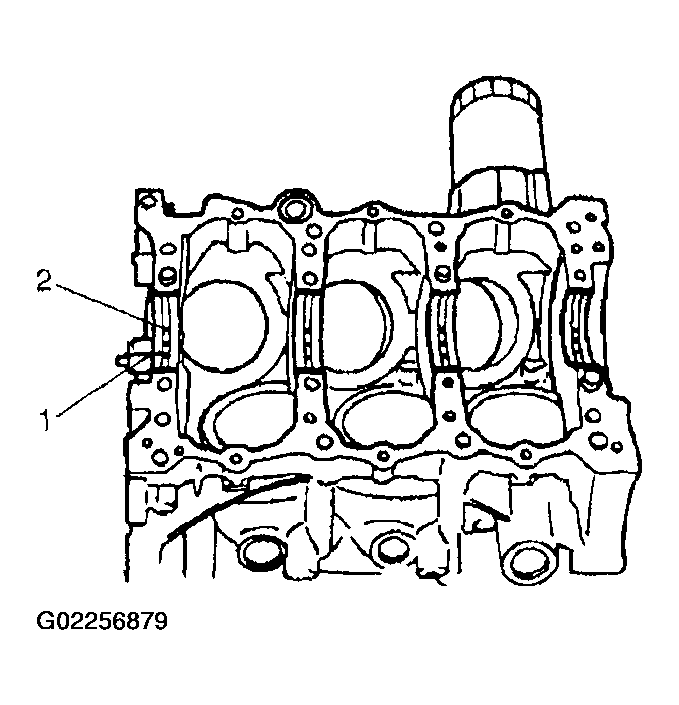

Fig 1: Identifying Upper Half Of Bearing Has Oil Groove
Courtesy of SUZUKI OF AMERICA CORP.
Lower half of bearing does not have oil groove.
