WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

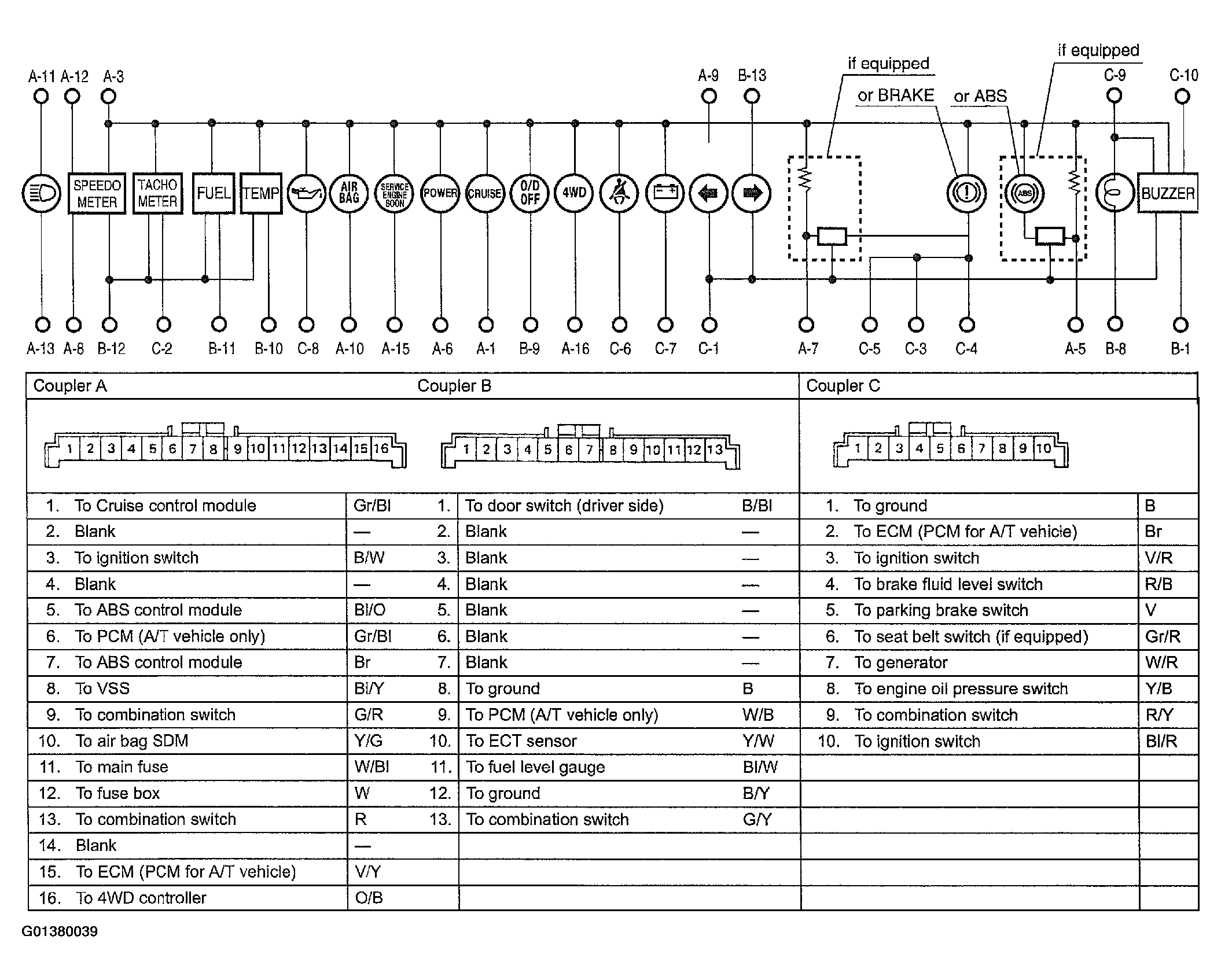

Fig 1: Combination Meter Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
Terminal arrangement of coupler viewed from harness side.
