Combination Meter Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable (-) at battery.
  2. If the vehicle is equipped with air bag system, disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM , Air Bag Restraint Systems.
  3. Remove steering column hole cover (1).
    Fig 1: Removing Steering Column Hole Cover
    G01380051Courtesy of SUZUKI OF AMERICA CORP.

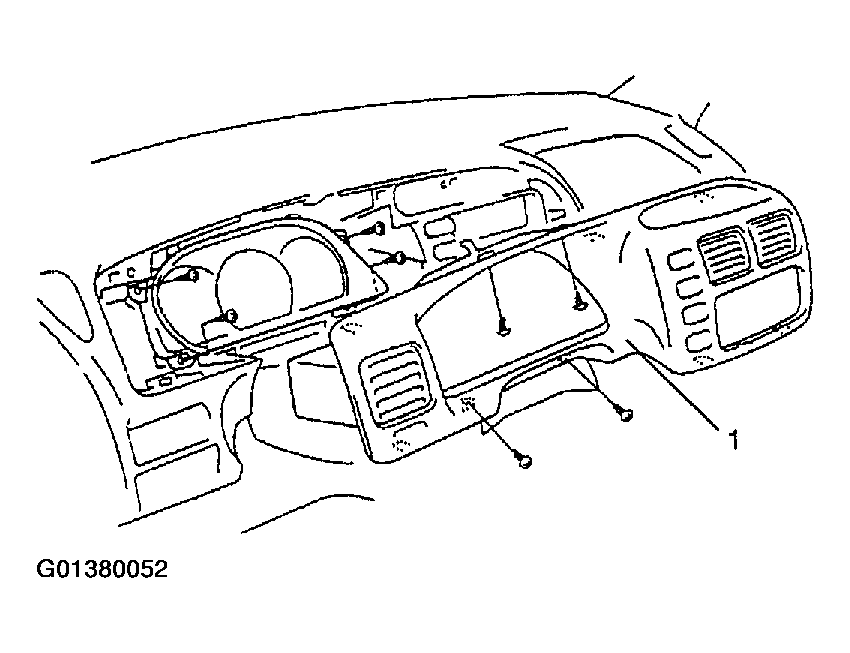

  4. Remove instrument cluster panel (1).
    Fig 2: Removing Instrument Cluster Panel
    G01380052Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove screws fastening combination meter.
  6. Disconnect couplers from combination meter.
  7. Remove combination meter from instrument panel.
