>> B << Engine Support Bracket Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Coat the threads of the seal bolt A in the illustration with 3M™ AAD Part number 8672 or equivalent before tightening.

  1. Tightening torque: 49 +/- 5 N.m (36 +/- 4 ft-lb)

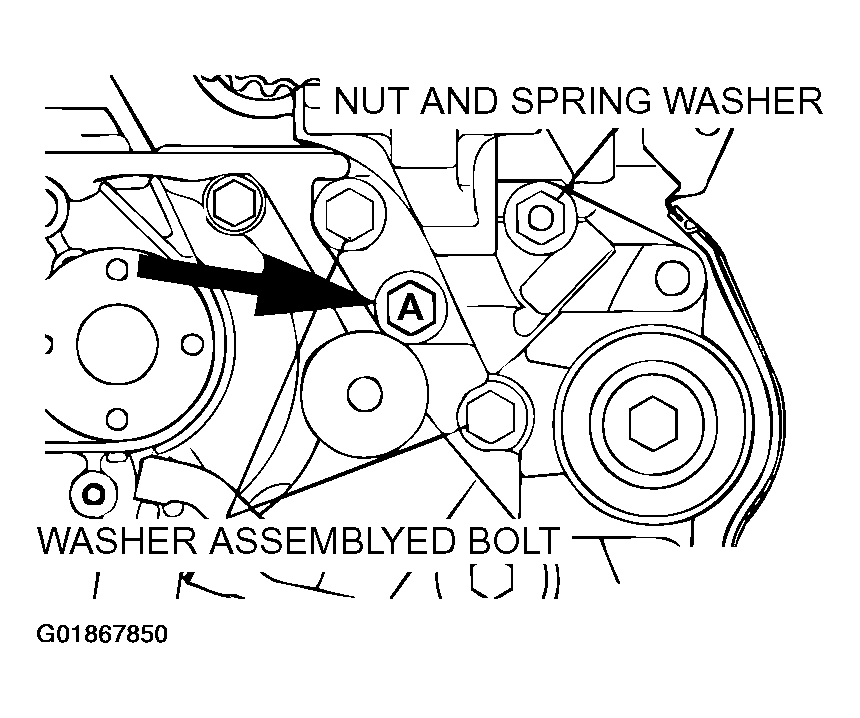

    Fig 1: Locating Seal Bolt A
    G01867850Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
