Removal And Installation: Notes

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

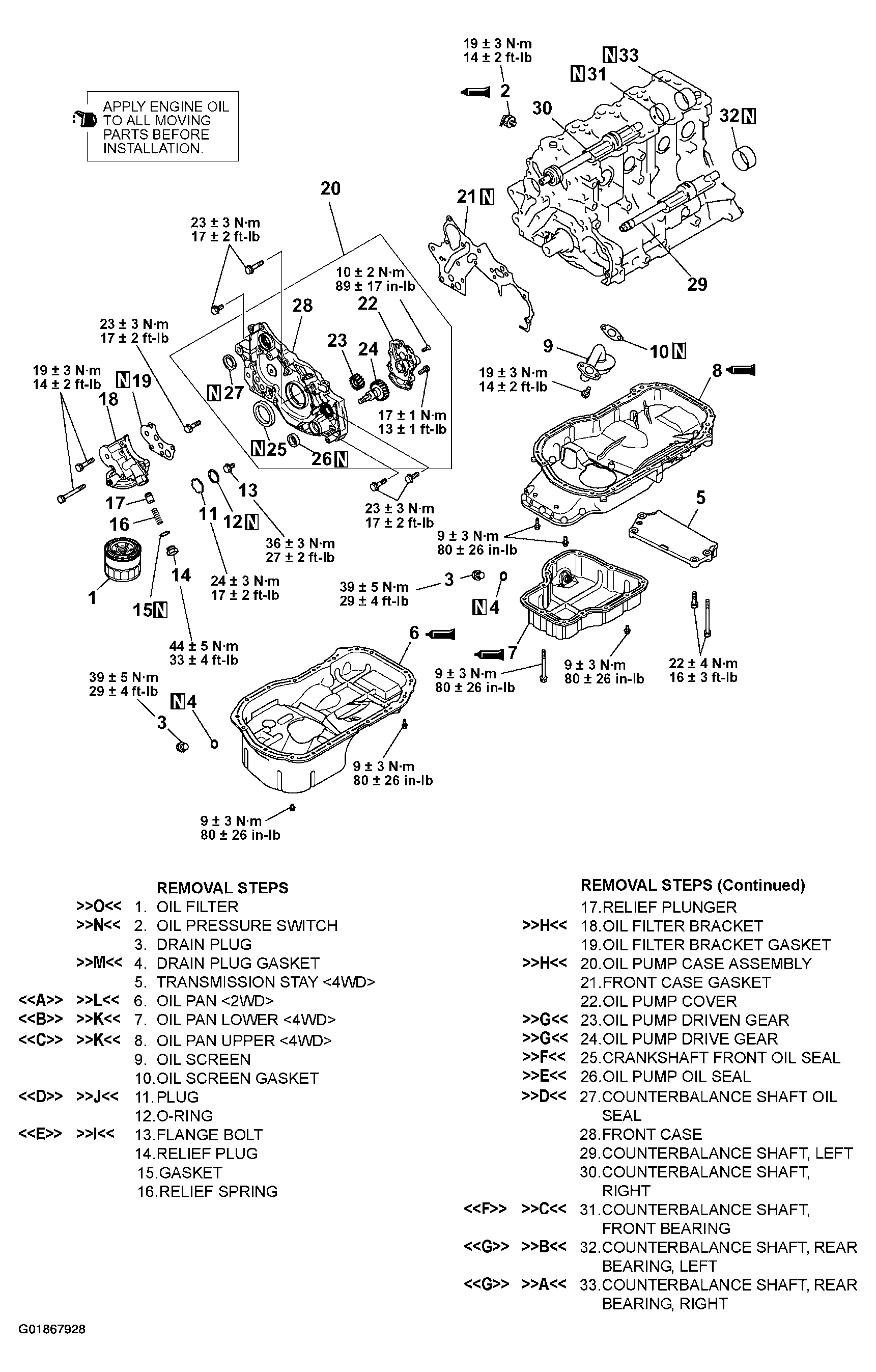

Fig 1: Removing & Installing Front Case And Oil Pump

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991603: Bearing Installer Stopper
MD998162: Plug Wrench
MD998285: Crankshaft Front Oil Seal Guide
MD998371: Silent Shaft Bearing Puller
MD998372: Silent Shaft Bearing Puller
MD998375: Crankshaft Front Oil Seal Installer
MD998705: Silent Shaft Bearing Installer
MD998727: Oil Pan Remover
MD998783: Plug Wrench Retainer
