Removal And Installation: Notes

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

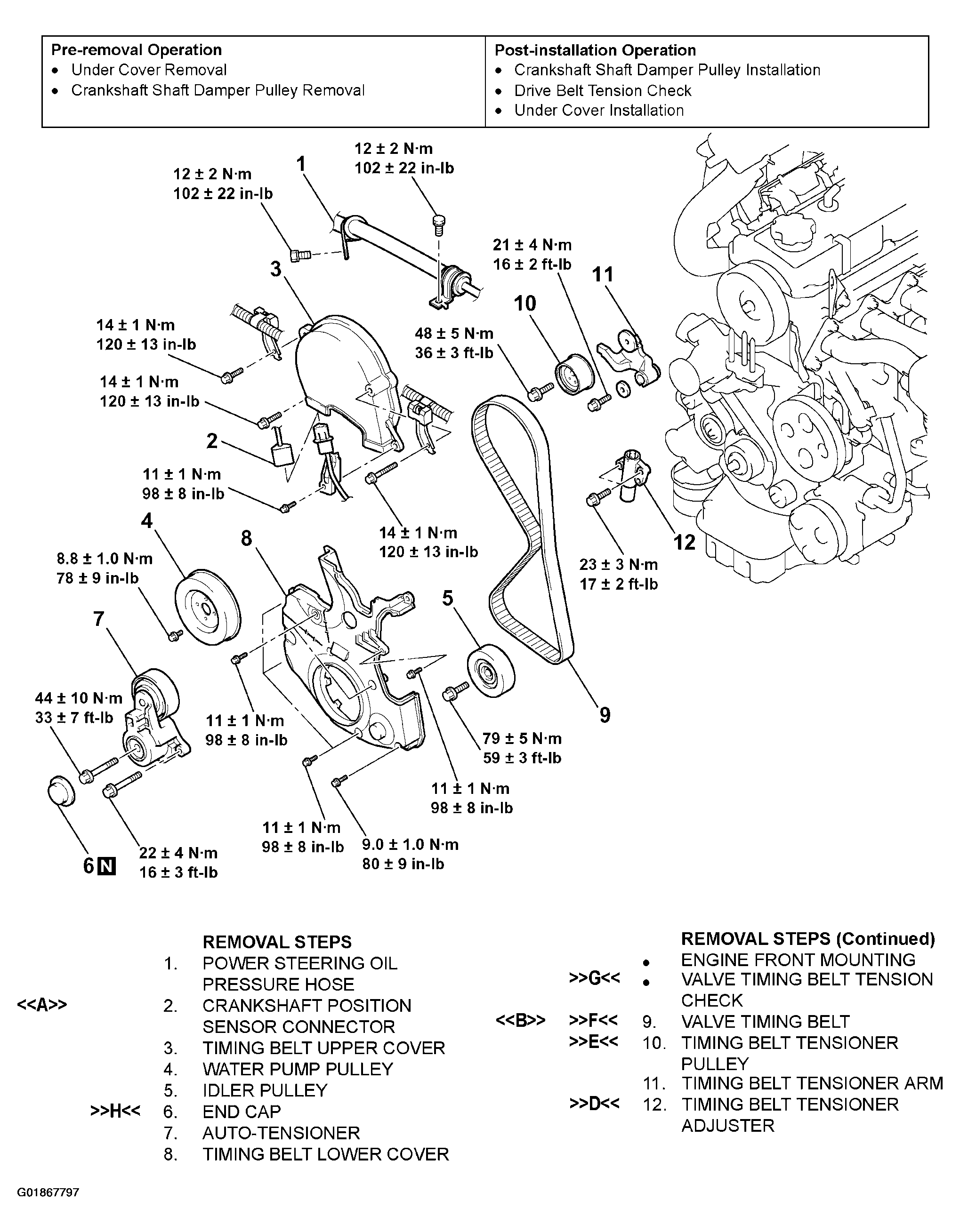

Fig 1: Removing & Installing Timing Belt (1 Of 2)
G01867797Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

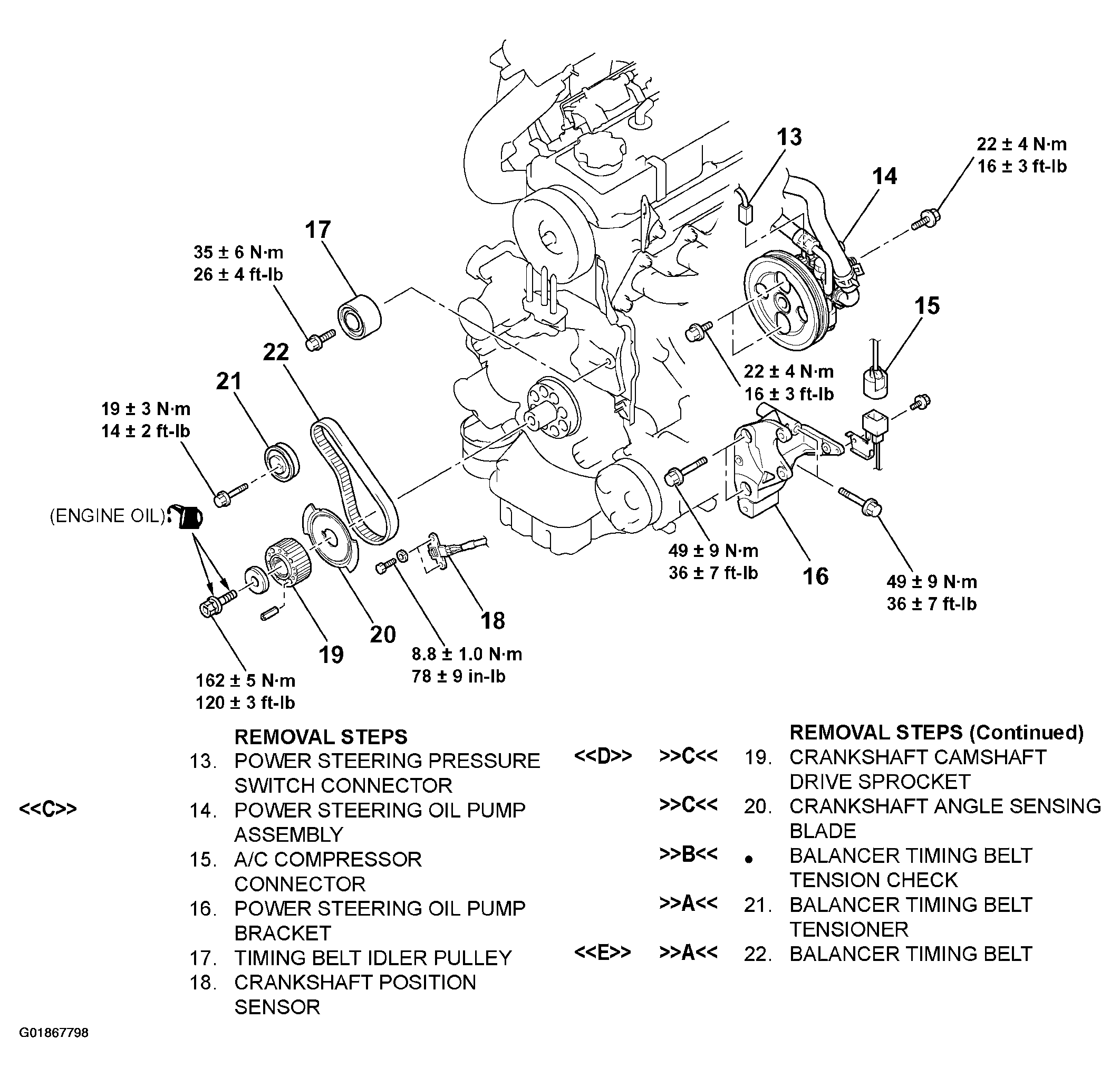

Fig 2: Removing & Installing Timing Belt (2 Of 2)
G01867798Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
