When using scan tool MB991502

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently tap the middle of the belt between the sprockets (the place indicated by the arrow) with your finger as shown in the illustration, and check that the vibration frequency of the belt is within the standard value.
    1. Standard value: 52 - 92 Hz
    NOTE: Refer to TIMING BELT  on the vibration frequency measurement using scan tool MB991502.

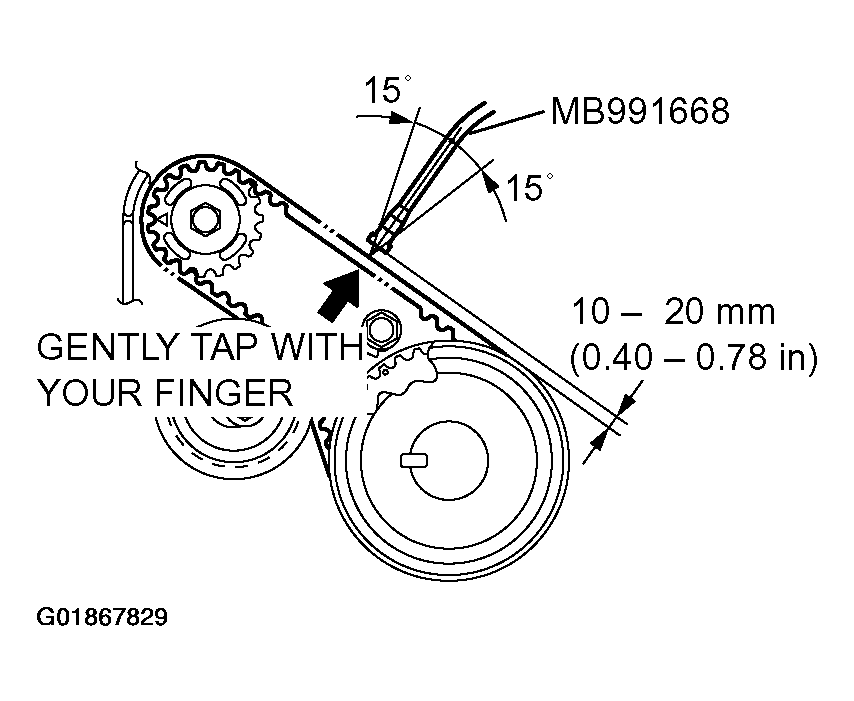

    Fig 1: Checking Vibration Frequency Of Belt
    G01867829Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. If not within the standard value, adjust the belt tension. (Refer to TIMING BELT .)
