Special Tools

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

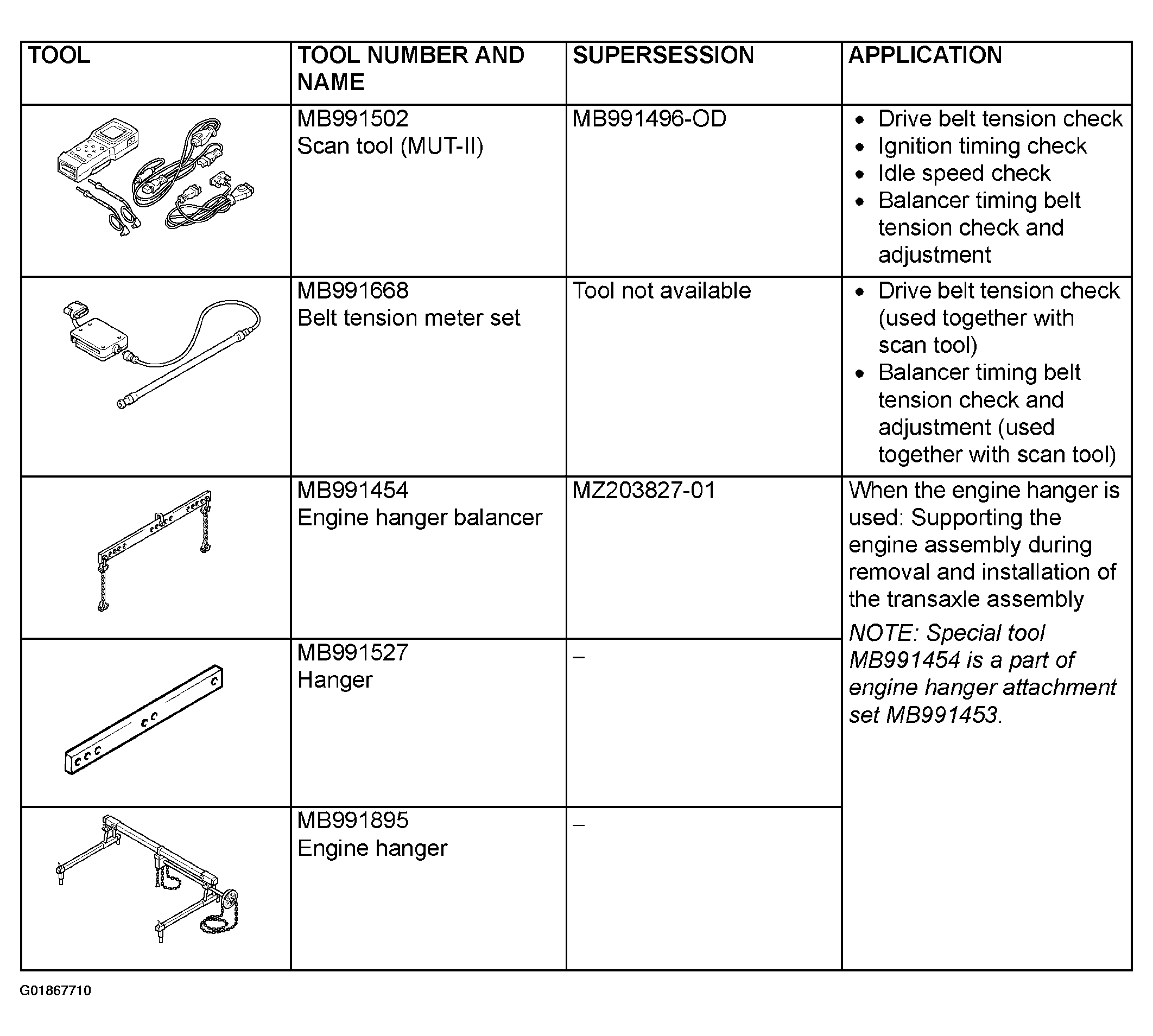

Fig 1: Identifying Engine Special Tools (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

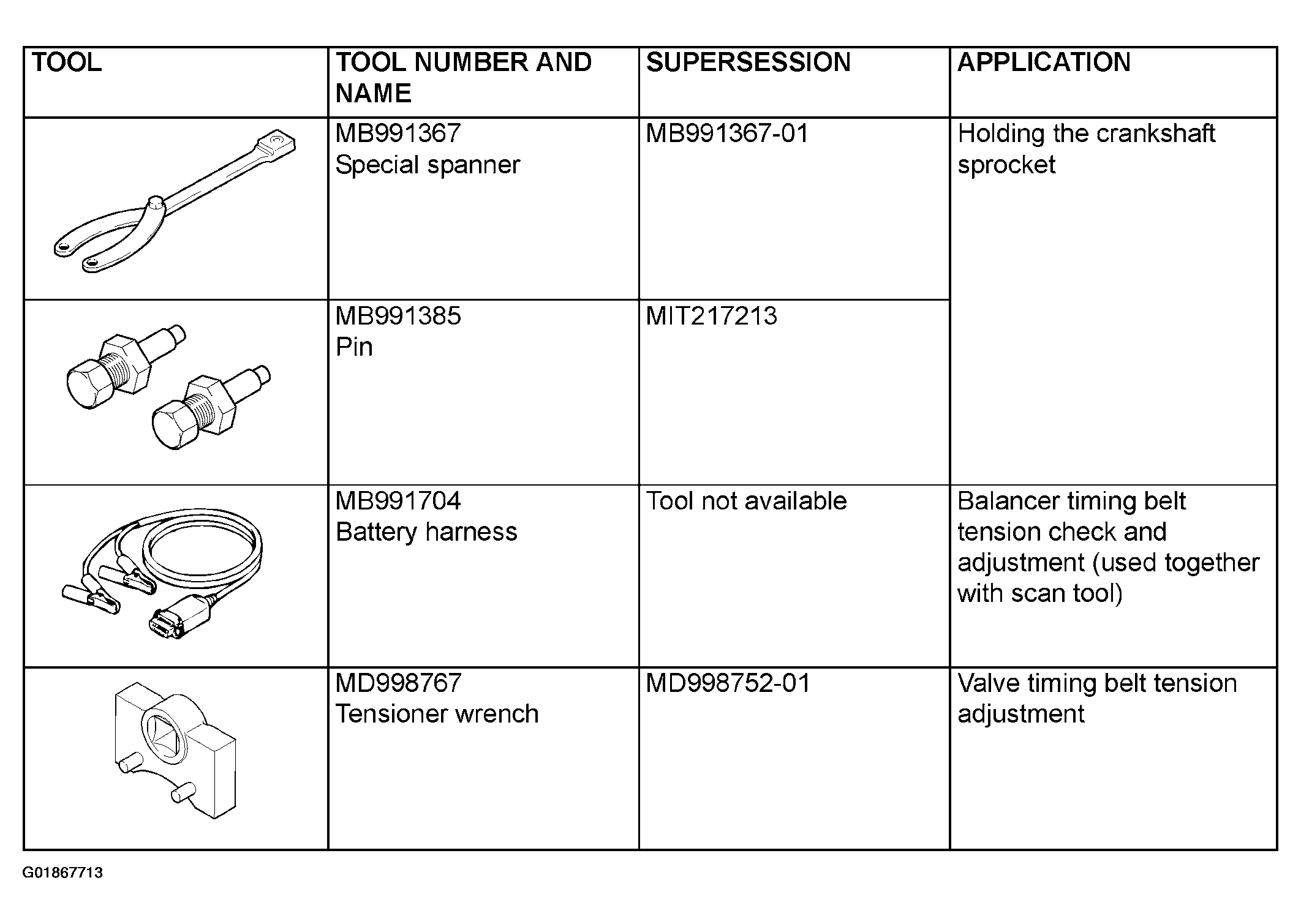

Fig 2: Identifying Engine Special Tools (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

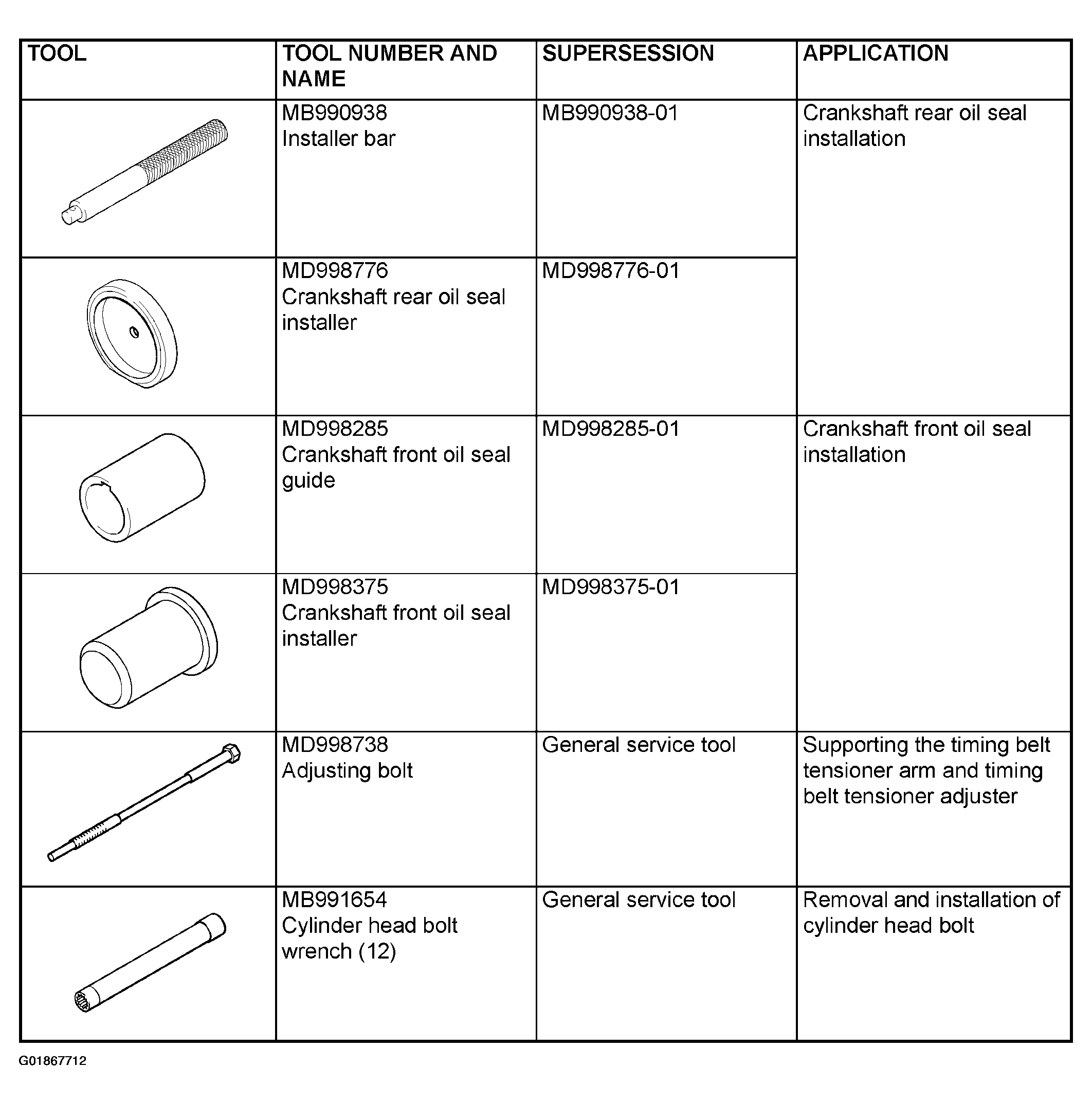

Fig 3: Identifying Engine Special Tools (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

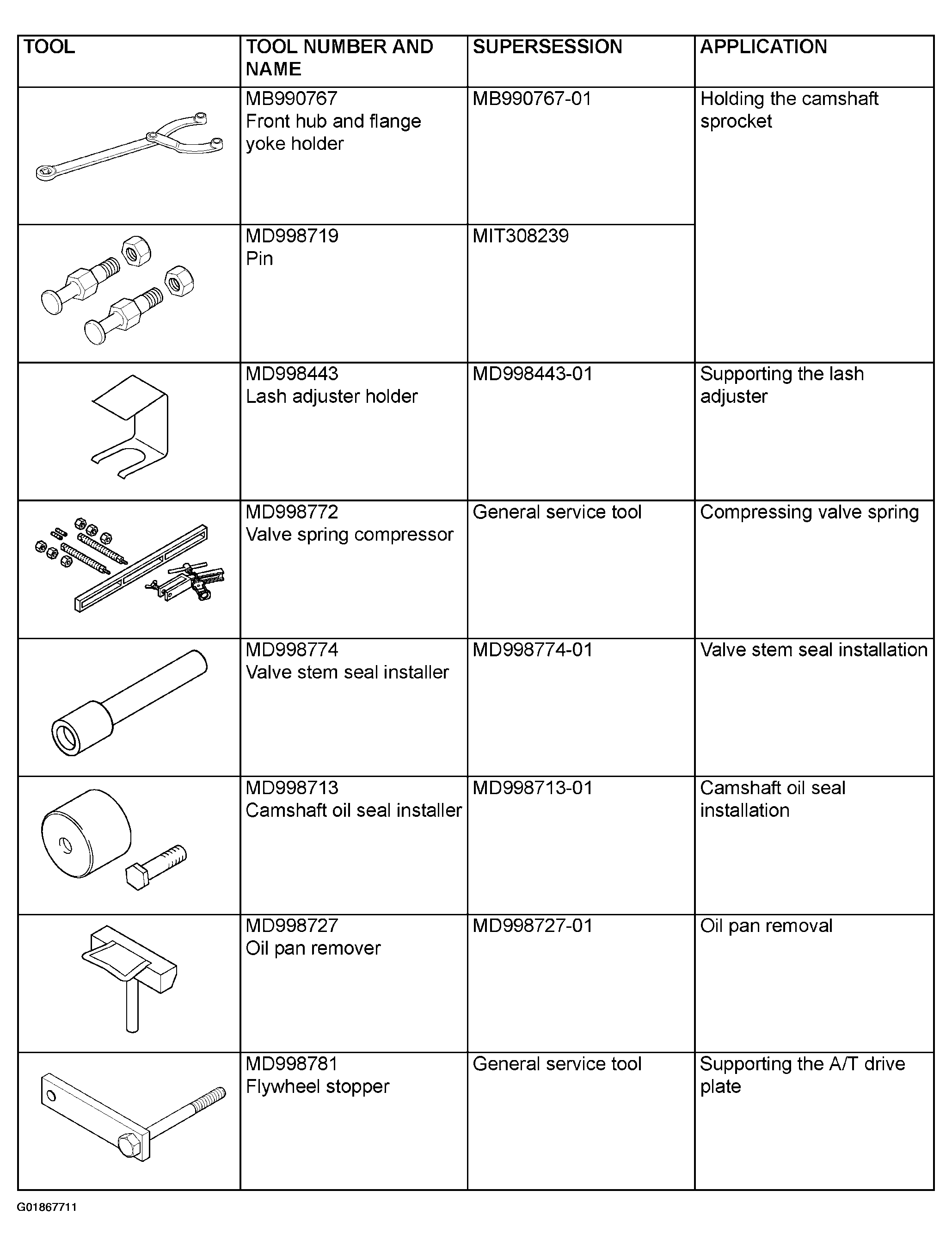

Fig 4: Identifying Engine Special Tools (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
