When using a tension gauge
WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Check the drive belt tension. (Refer to ON VEHICLE SERVICE .)

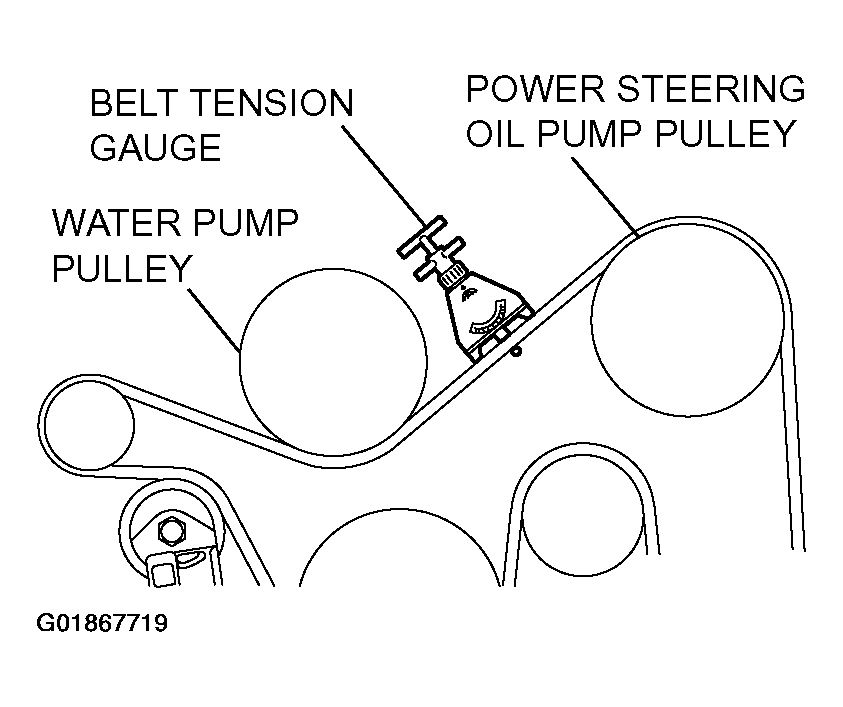

- Use a belt tension gauge in the middle of the belt between the pulleys (at the place indicated by the arrow) to measure that the belt tension is within the standard value.
- Standard value: 245 - 412 N
- If not within the standard value, replace the auto-tensioner. (Refer to TIMING BELT .)
