Removal And Installation < AWD >: Notes

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

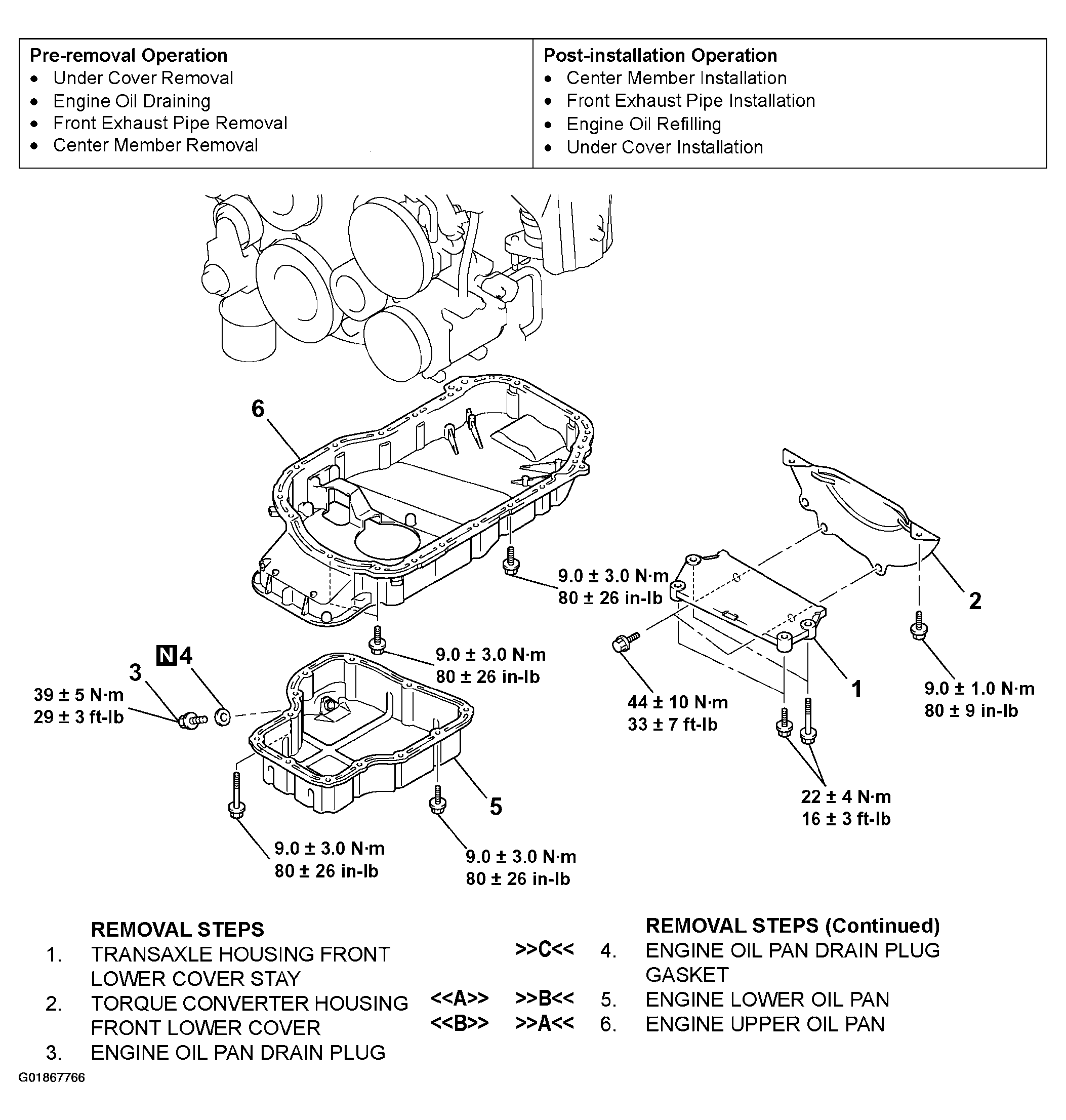

Fig 1: Removing & Installing Oil Pan (AWD)
G01867766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
