<< E >> Nut/Engine Front Mounting Brake Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the engine with a garage jack.
    Fig 1: Supporting Engine With Garage Jack
    G01867736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove special tool MB991895.
  3. Hold the engine assembly with a chain block, etc.

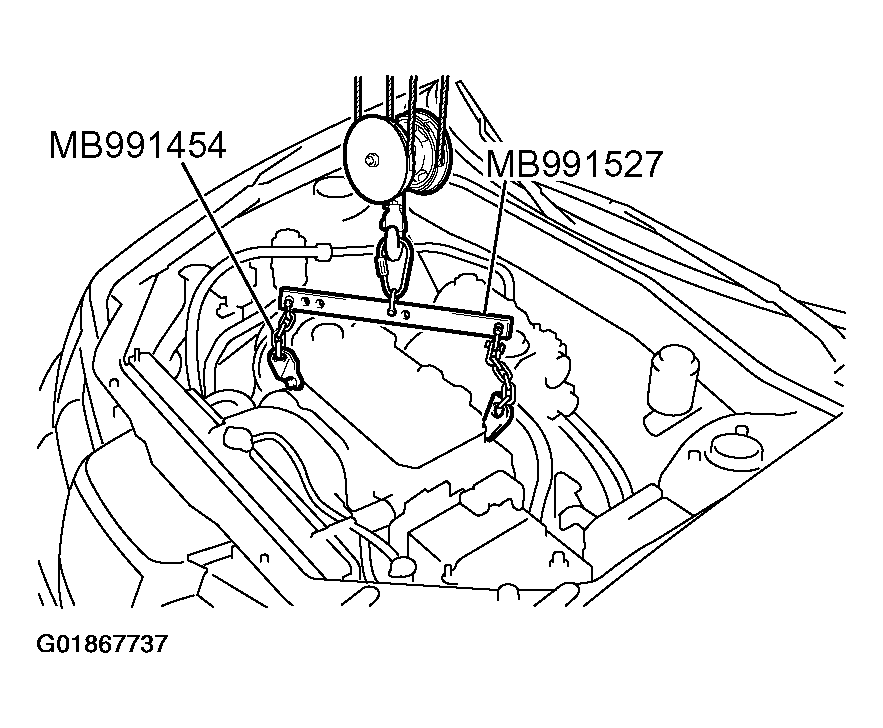

    Fig 2: Holding Engine Assembly With Chain Block
    G01867737Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Place a garage jack against the engine the engine oil pan with a piece of wood in between so that the weight of the engine and transaxle assembly is no longer being applied to the engine front mounting bracket.
  5. Loosen the engine front mounting bracket mounting nuts and bolts, and remove the engine front mounting bracket.
