>> B << Engine Front Mounting Bracket Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine front mounting bracket while adjusting the position of the engine.
  2. Support the engine assembly with a garage jack.
  3. Remove the chain block.
  4. Hold the engine assembly with special tool MB991895.

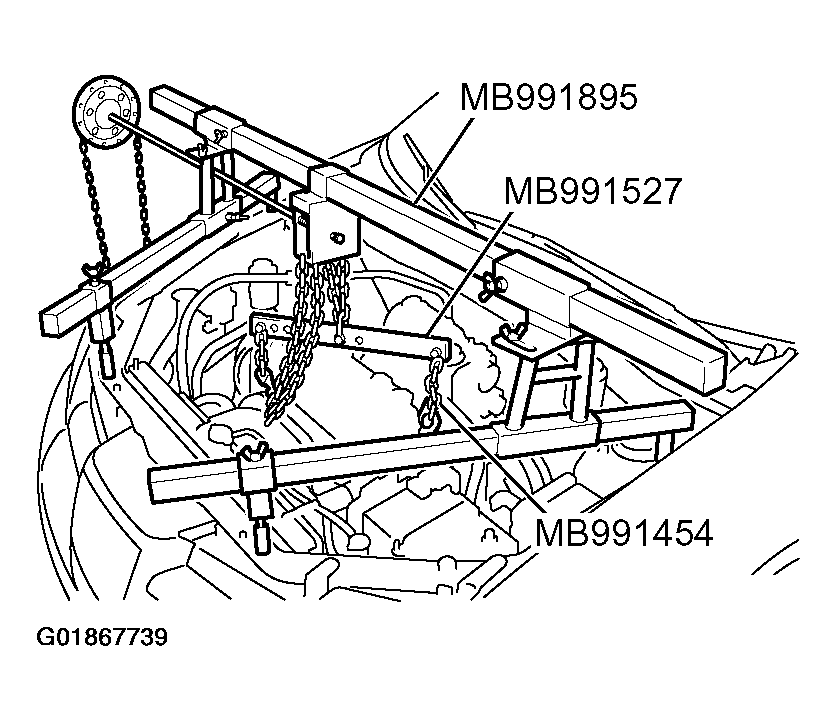

    Fig 1: Holding Engine Assembly With Special Tool MB991895
    G01867739Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
