>> A << Engine Assembly Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine assembly, being careful not to pinch the cables, hoses or wiring harness connectors.

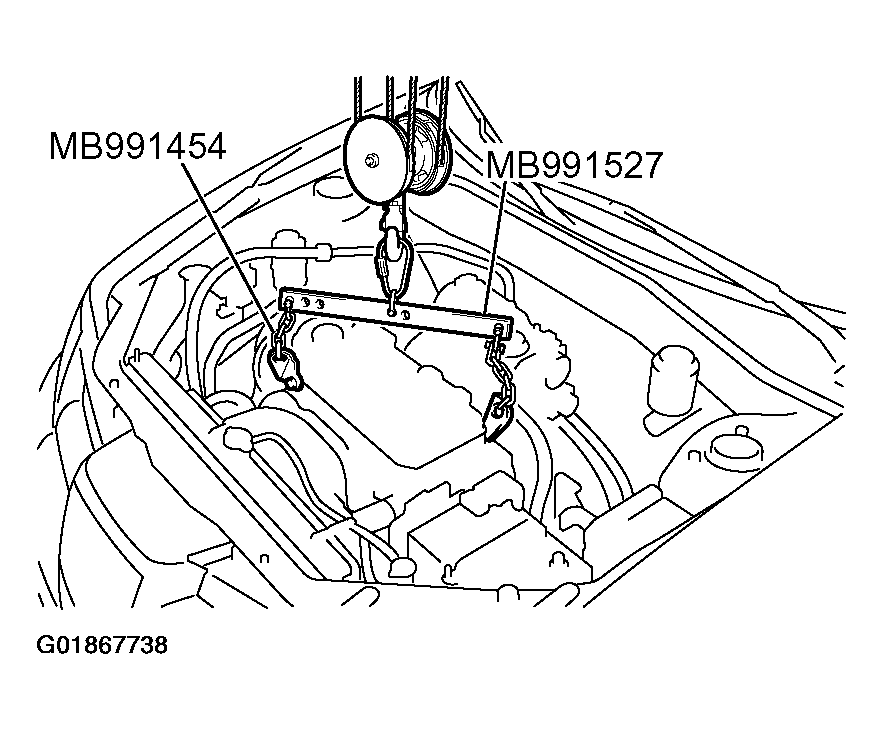

Fig 1: Installing Engine Assembly
G01867738Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
