Removal And Installation: Notes

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

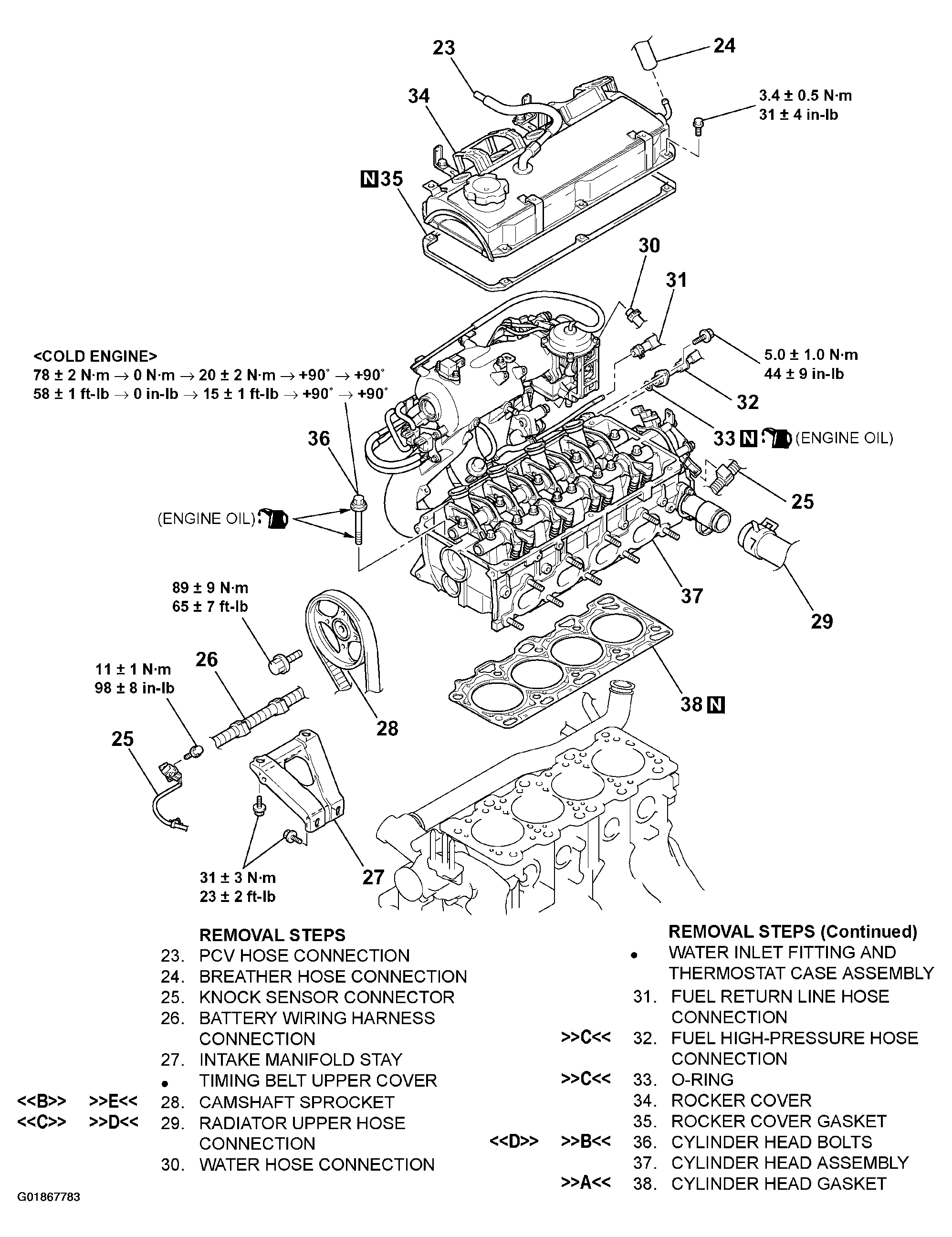

Fig 1: Removing & Installing Cylinder Head Gasket (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Removing & Installing Cylinder Head Gasket (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990767: Front Hub and Flange Yoke Holder
MB991654: Cylinder Head Bolt Wrench (12)
MD998719: Pin
MD998738: Adjusting Bolt
