Removal And Installation: Notes

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: *Remove and assemble the marked parts in each cylinder unit.

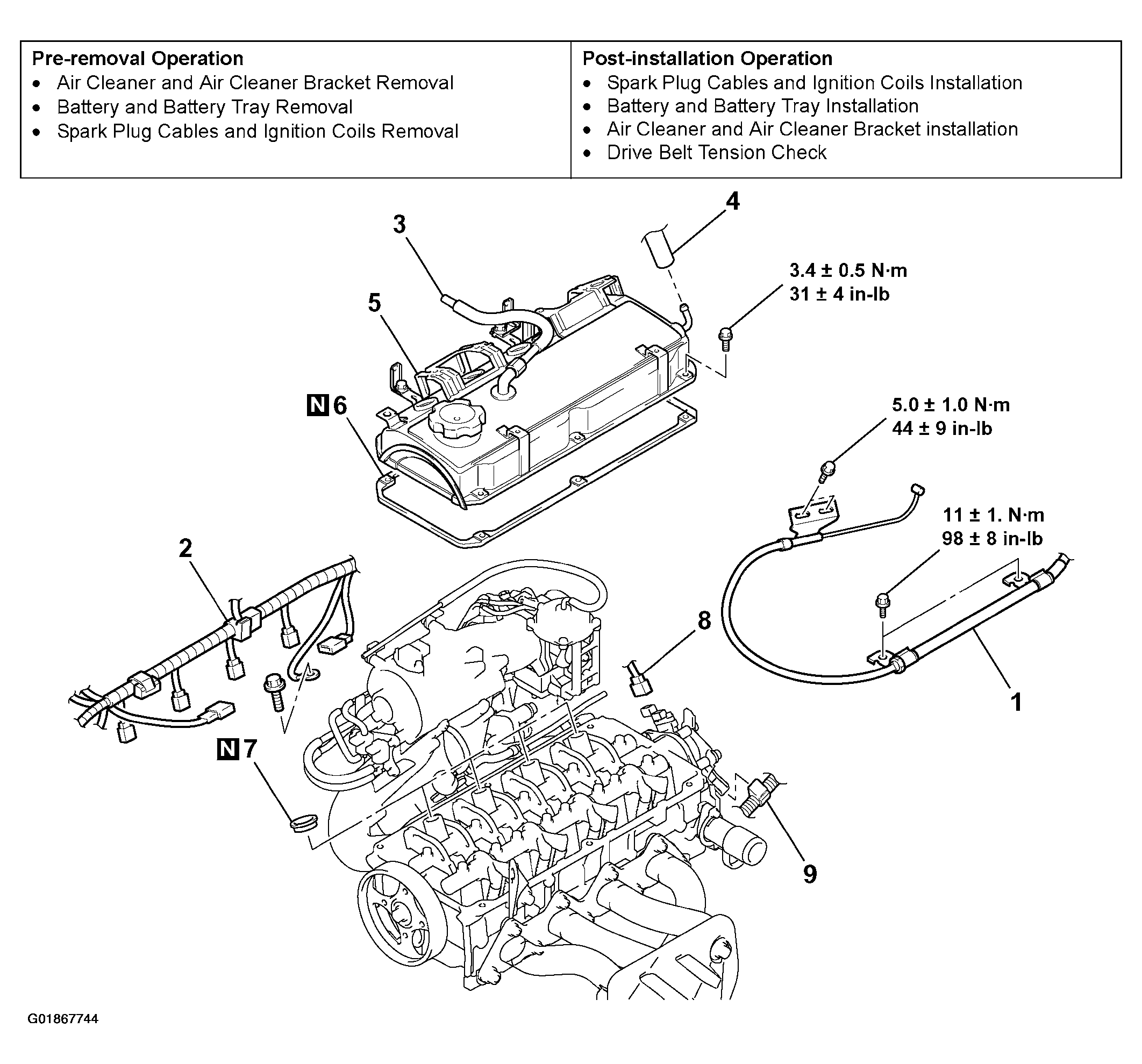

Fig 1: Removing & Installing Camshaft And Valve Stem Seal (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

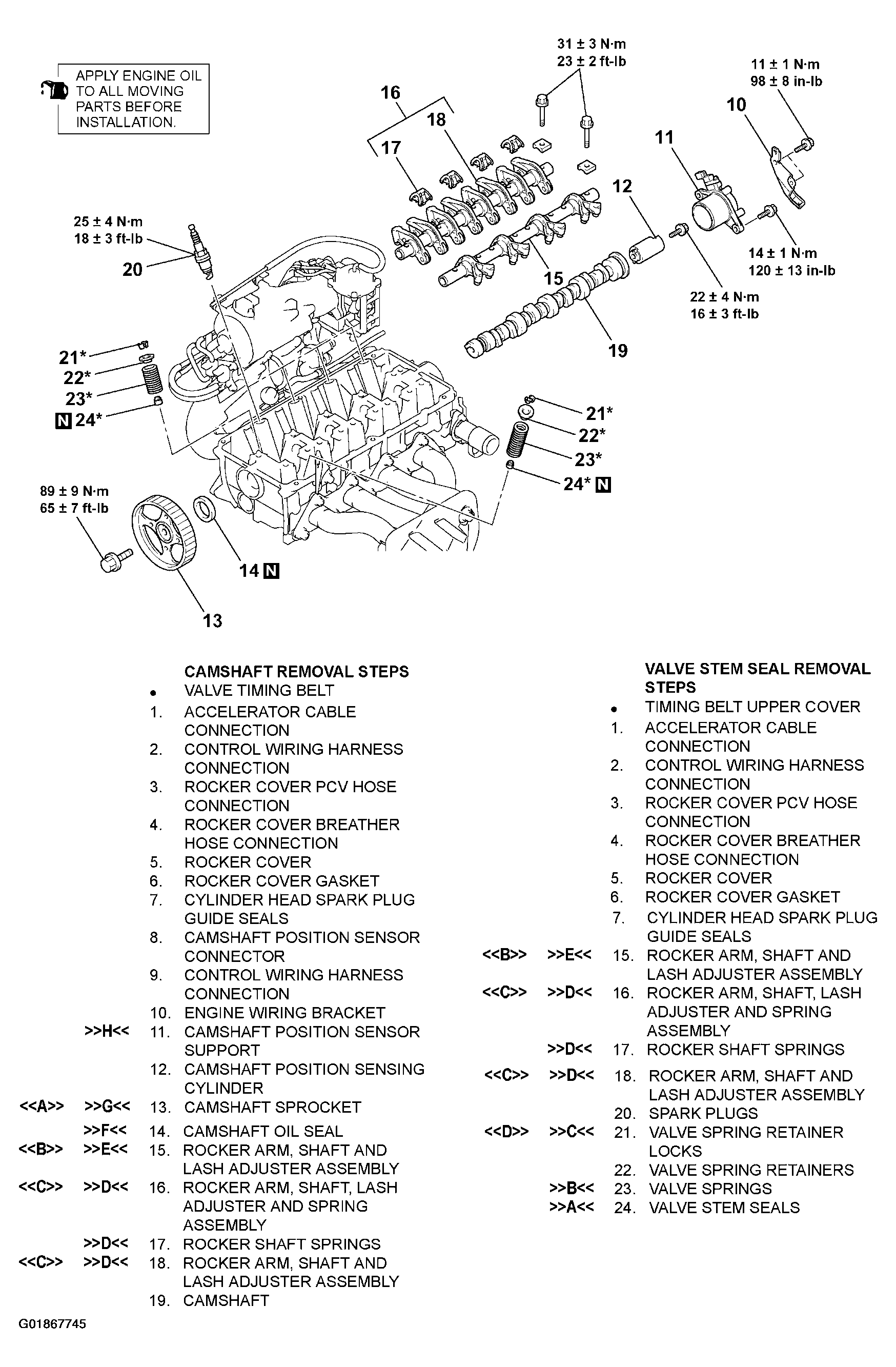

Fig 2: Removing & Installing Camshaft And Valve Stem Seal (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990767: Front Hub and Flange Yoke Holder
MD998443: Lash Adjuster Holder
MD998713: Camshaft Oil Seal Installer
MD998719: Pin
MD998772: Valve Spring Compressor
MD998774: Valve Stem Seal Installer
