Magnet Clutch Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install magnet clutch coil (2).
NOTE: Protrusion on under side of coil ring (1) must match hole in compressor assembly (3) to prevent movement ant correctly locate lead wire.
Using special tool (C), install snap ring as shown.
Special tool

(C): 09990-06107

Fig 1: Installing Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.
Install clamp portion and ground terminal of lead wire.
Install magnet clutch.
1. Set magnet clutch squarely over clutch installation boss.
2. Place special tool (D) onto clutch bearing.
  Ensure that edge rests only on inner race of bearing.

  Special tool

  (D): 09991-06010

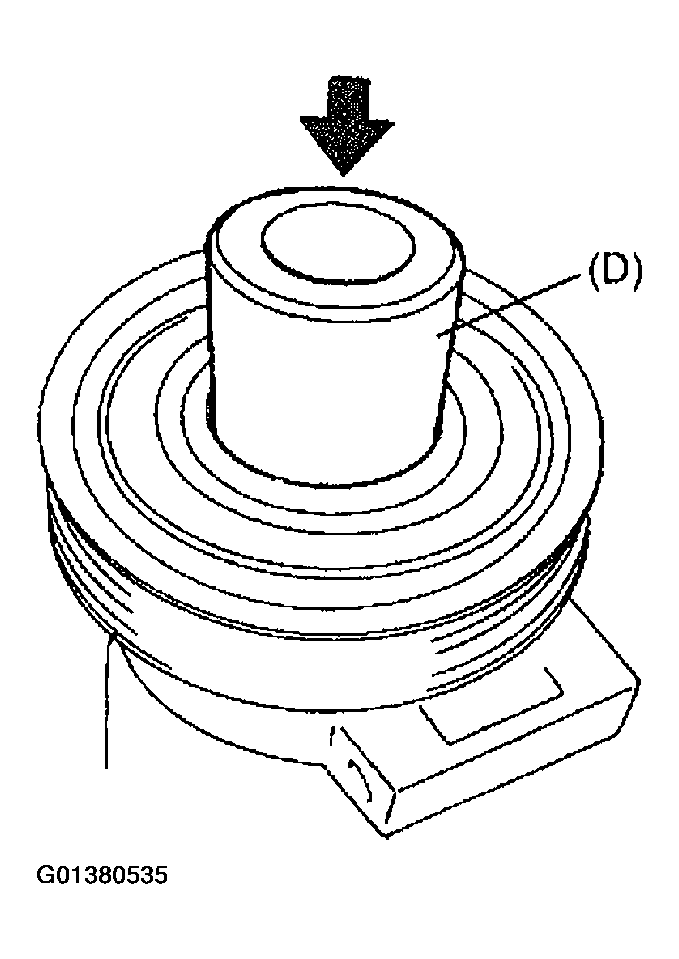

  Fig 2: Installing Magnetic Clutch
  Courtesy of SUZUKI OF AMERICA CORP.
3. Install snap ring.
CAUTION: Be careful not to scratch bearing seal.
Adjust clearance, between armature plate and magnet clutch by putting shim on compressor shaft.
Standard clearance between armature plate and magnet clutch

"a": 0.3 - 0.5 mm (0.012 - 0.02 in.)

Fig 3: Adjusting Clearance, Between Armature Plate & Magnetic Clutch
Courtesy of SUZUKI OF AMERICA CORP.
Tighten new armature plate nut as specified torque.

Tightening torque

Armature plate nut (a): 18 N.m (1.8 kg-m, 13.0 lb-ft)

Special tool

(A): 09991-06020

Fig 4: Tightening Armature Plate Nut

Courtesy of SUZUKI OF AMERICA CORP.
