Magnet Clutch Components

WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

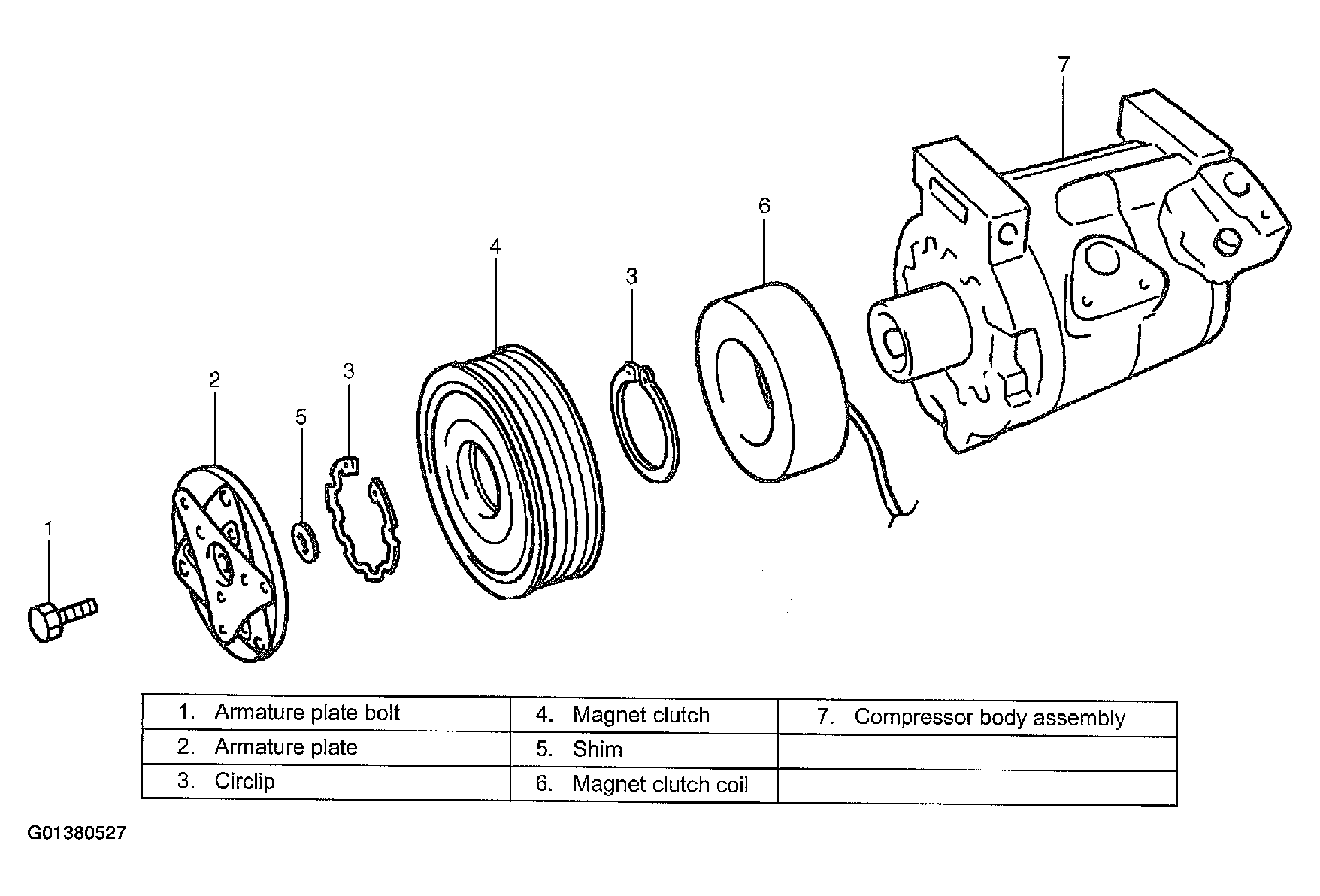

Fig 1: Exploded View Of Magnetic Clutch Components
G01380527Courtesy of SUZUKI OF AMERICA CORP.
