Compressor Removal & Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to use HFC-134a (R-134a) compressor oil.

If compressor was replaced, pour new compressor oil with the same amount as that drained from compressor. See REPLENISHING COMPRESSOR OIL and PERFORMANCE DIAGNOSIS OF A/C SYSTEM .

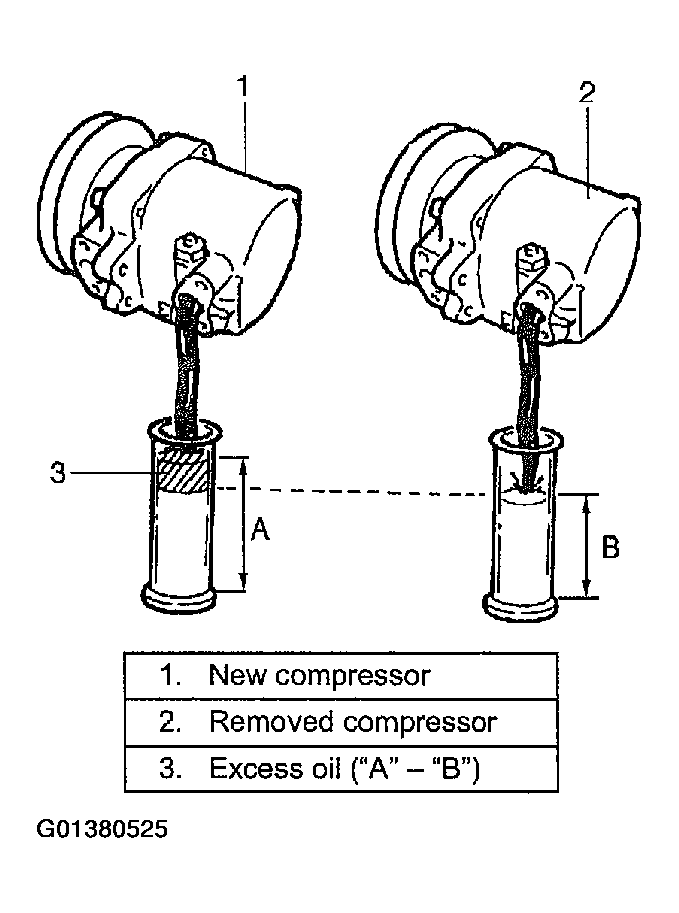

Fig 1: Identifying Compressor Oil Volume
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Compressor assembly supplied from factory is filled up with the following amount of oil.

Amount of oil in compressor: 100 cm³ (100 cc, 6.1 in³ )
Install compressor as follows.
1. Install compressor to its bracket.
  Tightening torque

  Compressor mounting bolt (a): 23 N.m (2.3 kg-m, 17.0 lb-ft)
2. Connect suction and discharge hoses to compressor.
3. Install generator belt. See GENERATOR BELT .

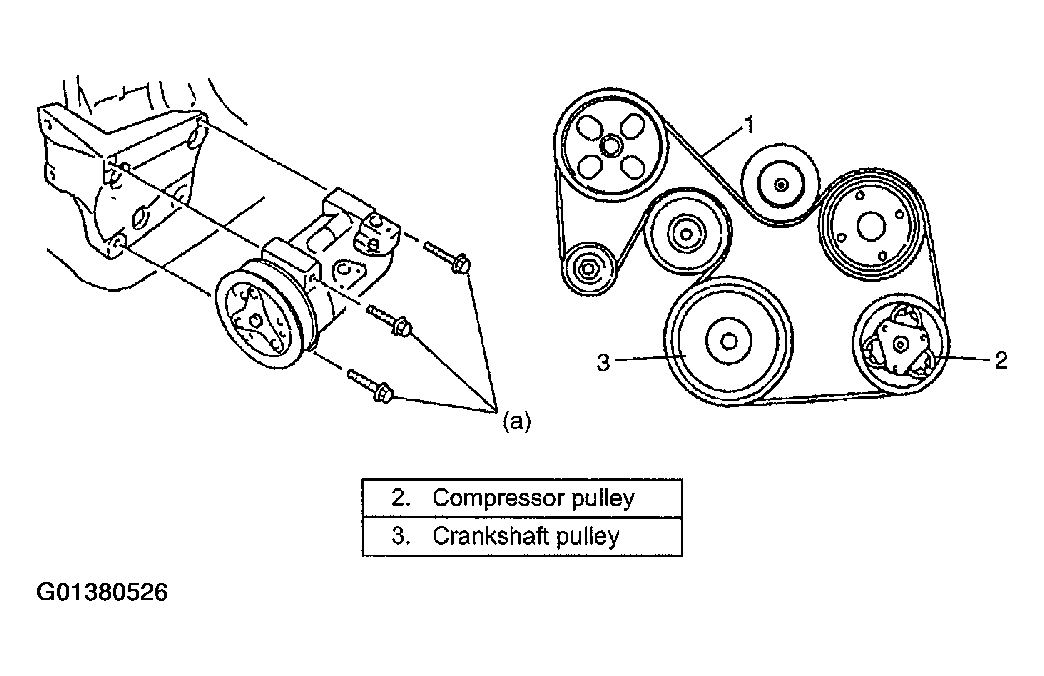

  Fig 2: Installing A/C Compressor & Generator Belt
  Courtesy of SUZUKI OF AMERICA CORP.
Connect thermal protector lead wire.
Evacuate and charge system. See OPERATION PROCEDURE FOR CHARGING A/C WITH REFRIGERANT .

CAUTION: Be sure to use HFC-134a (R-134a) compressor oil.
