System Circuit

WARNING: This page is about a different car, the 2003 Suzuki Vitara, 2003 Suzuki Grand Vitara, 2002 Suzuki Vitara, and 2002 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

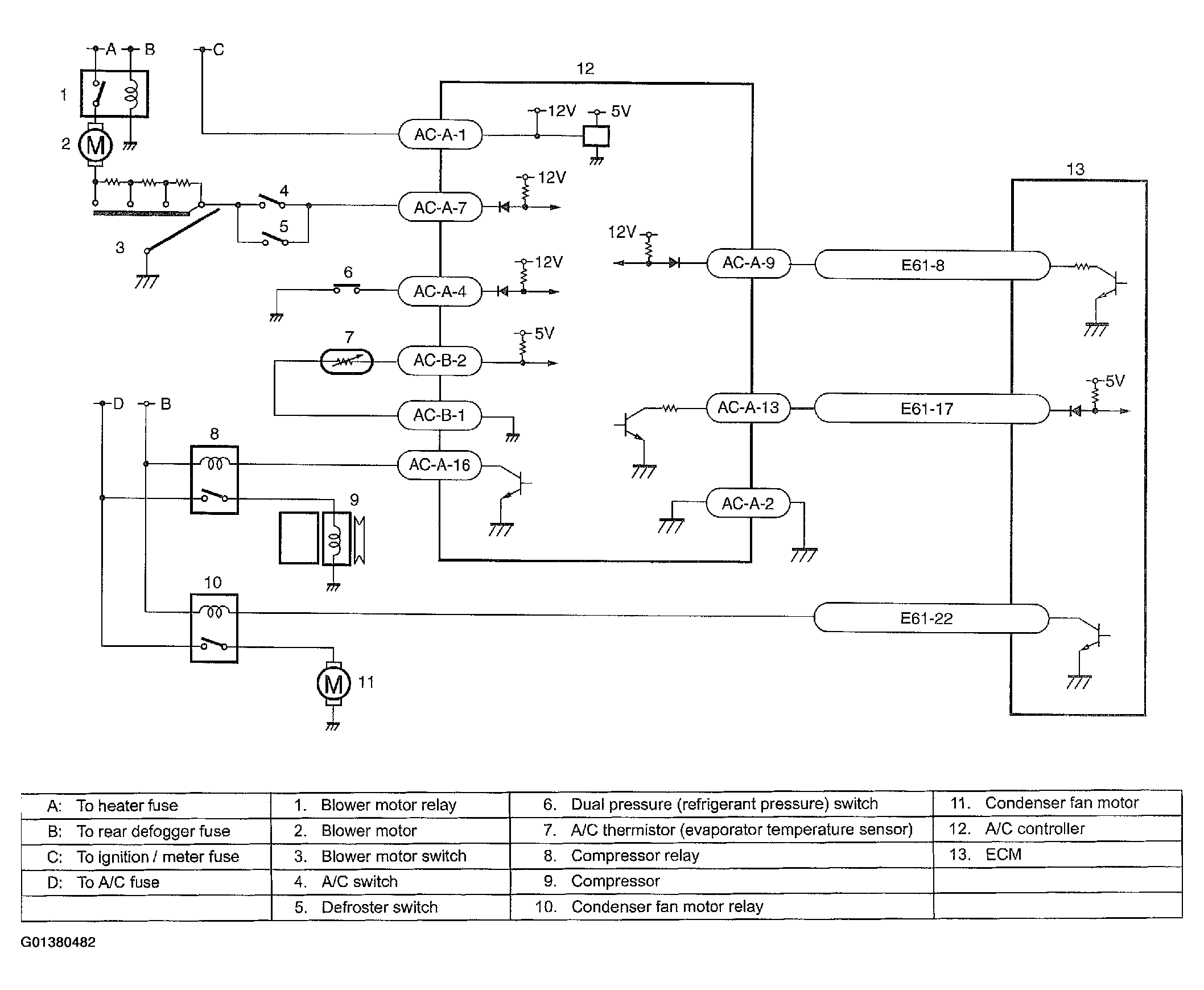

Fig 1: Wiring Diagram - A/C System Circuit
G01380482Courtesy of SUZUKI OF AMERICA CORP.
