Heater Control Lever Assembly Inspection

WARNING: This page is about a different car, the 2003 Suzuki Vitara and 2002 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check heater blower motor switch for each terminal-to-teminal continuity. See HEATER & VENTILATION WIRING CIRCUIT DIAGRAM .

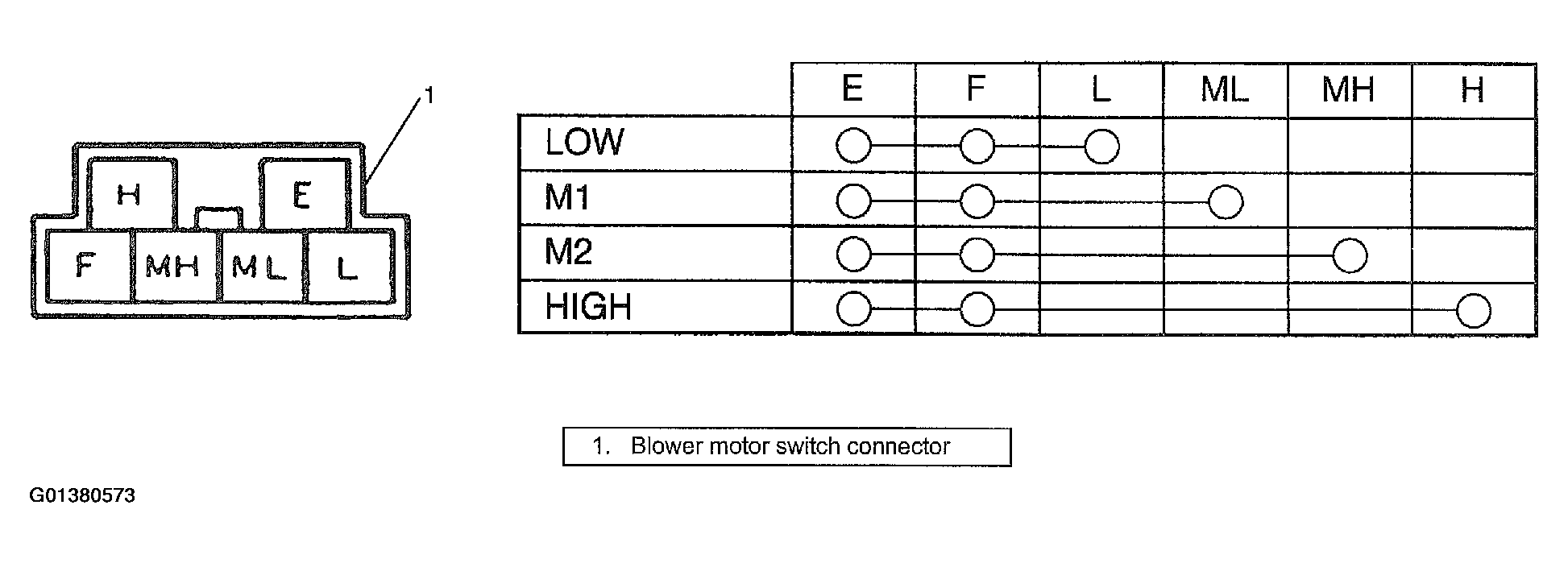

Fig 1: Checking Heater Blower Motor Switch For Each Terminal-To-Teminal Continuity
G01380573Courtesy of SUZUKI OF AMERICA CORP.
