Cooling Fan/Generator Belt Removal and Installation: Removal
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Loosen P/S pump drive belt adjusting bolt and then remove P/S pump belt.

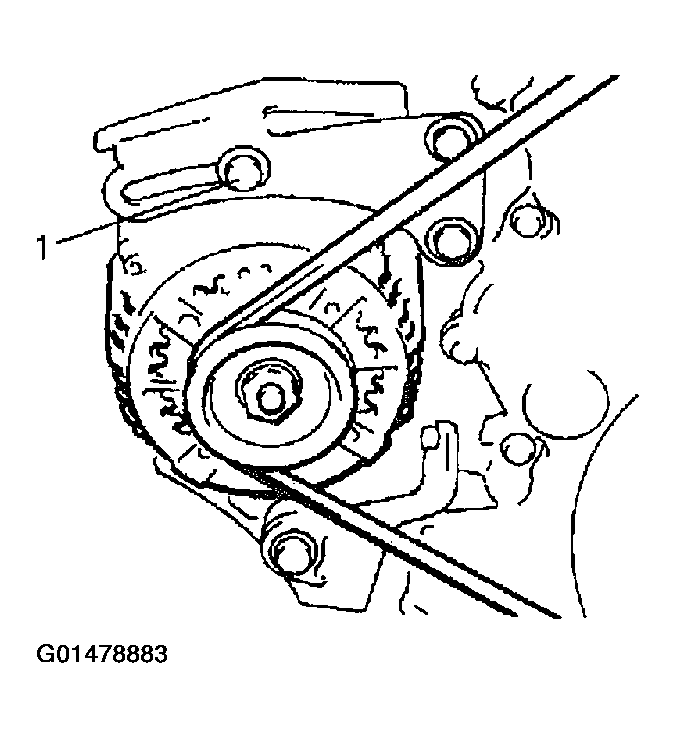

- Loosen adjusting bolt (1) and pivot bolt.
Courtesy of SUZUKI OF AMERICA CORP.
- Slacken belt by displacing generator and then remove it.
