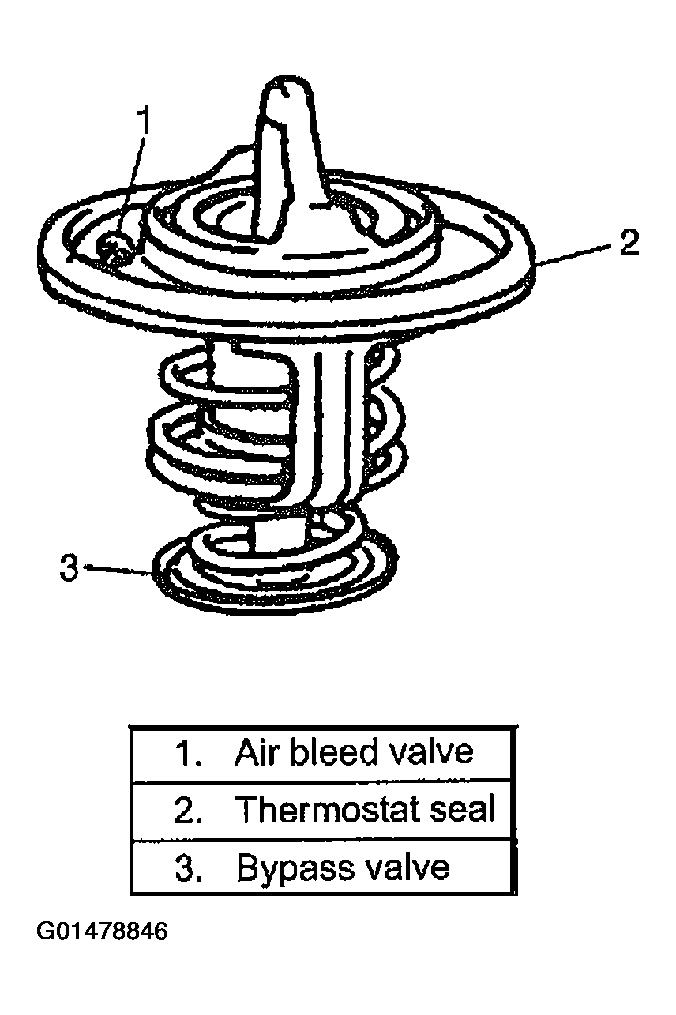

Thermostat Description
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Temperature at which valve begins to open:
82+/-2°C (179+/-3.6°F)
- Temperature at which valve becomes fully open:
95°C (203°F)
- Valve lift:
More than 8 mm (0.315 in) at 95°C (203°F)
Courtesy of SUZUKI OF AMERICA CORP.
