Cooling Fan Clutch Description
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

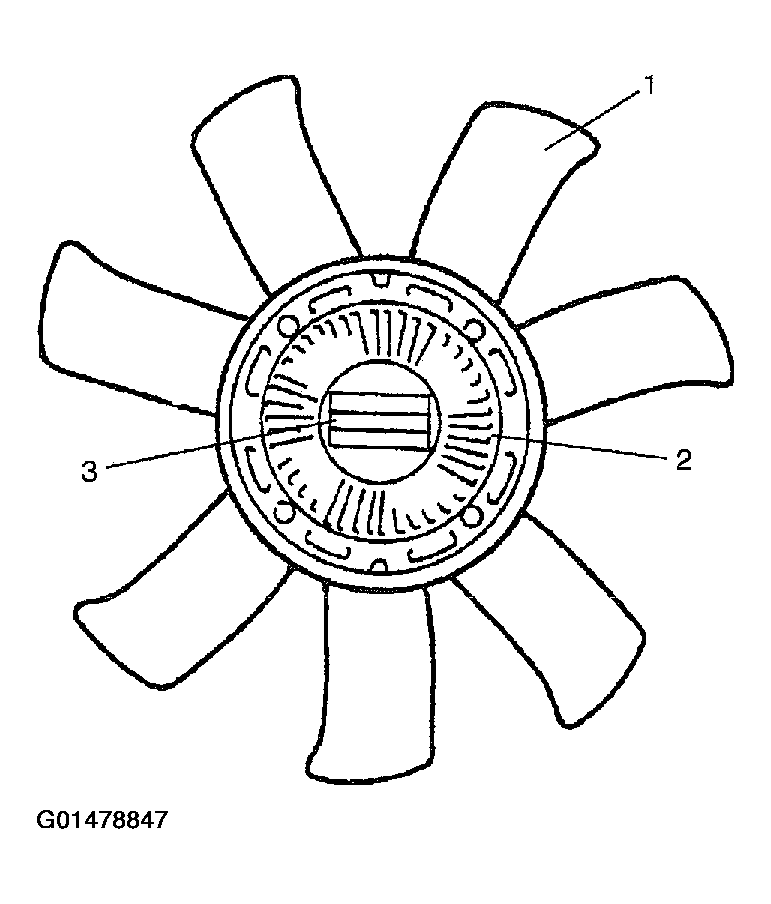

Fluid is enclosed in the cooling fan clutch (2) and at its center front, there is a bimetal (3) whose thermal reaction and the engine speed control the cooling fan speed.
WARNING:
Keep hands, tools, and clothing away from engine cooling fan (1) to help prevent personal injury.
CAUTION:
Do not disassemble fan clutch.
