For H27 Engine Model

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. After applying differential oil to differential gear (4), pinions (5), pinion shafts (6) thrust washer (2) and spring washer (1), install them in differential right case (3).

    For correct installing direction of thrust washer (2) and spring washer (1), refer to the figure.

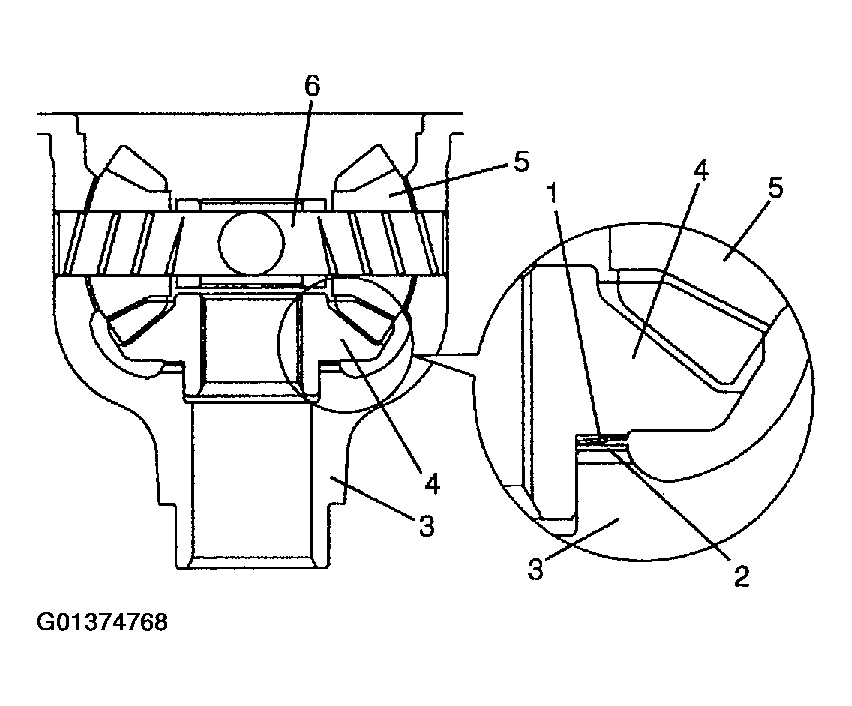

    Fig 1: Installing Differential Gear, Pinions, Pinion Shafts, Thrust Washer And Spring Washer In Differential Right Case
    G01374768Courtesy of SUZUKI OF AMERICA CORP.
  2. When installing pinion shaft No. 2 (2) (shorter) into differential case and pinion, insert its "a" side into pinion joint (1).
    NOTE: "a" is longer than "b". ("a" > "b")

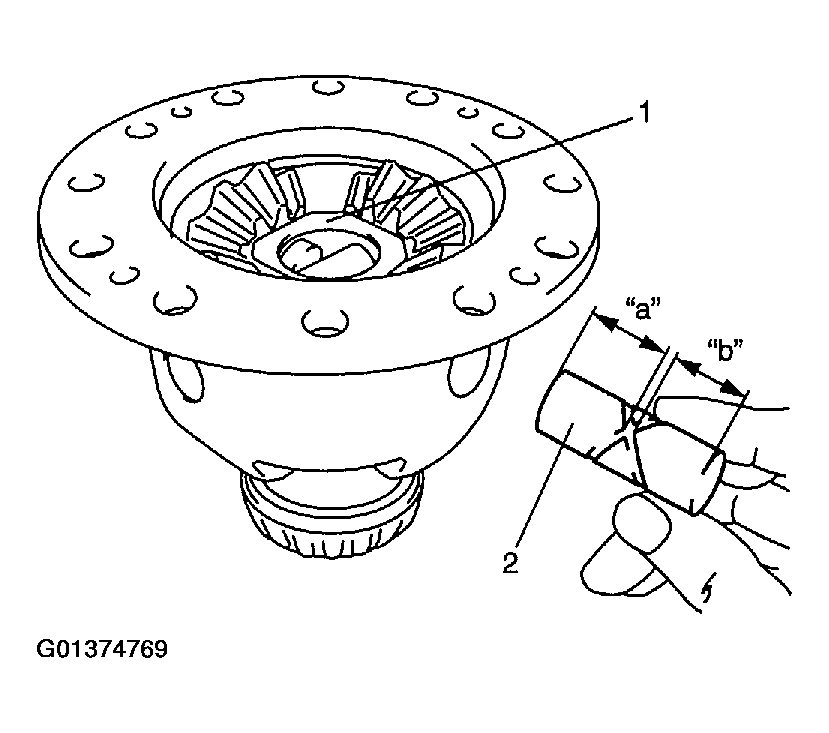

    Fig 2: Installing Pinion Shaft No. 2
    G01374769Courtesy of SUZUKI OF AMERICA CORP.
  3. Check differential pinion gear (1) for smooth rotation.
    Fig 3: Checking Differential Pinion Gear Rotation
    G01374770Courtesy of SUZUKI OF AMERICA CORP.
  4. In the same manner as described in Step  1, install thrust washer (2), spring washer (1) and differential gear (4).

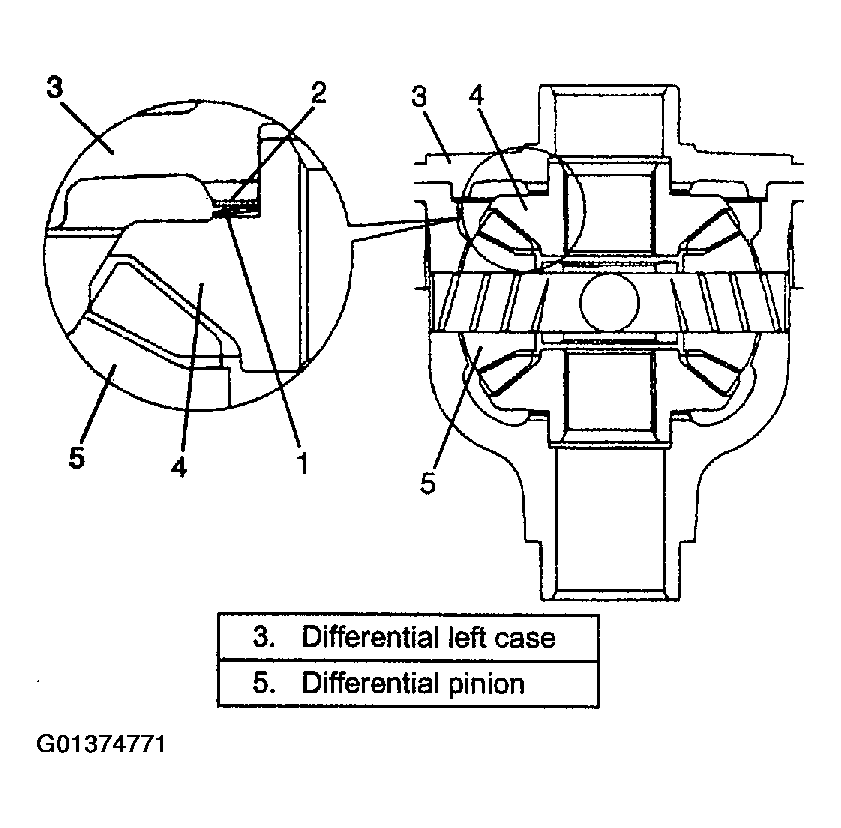

    Fig 4: Installing Thrust Washer, Spring Washer And Differential Gear
    G01374771Courtesy of SUZUKI OF AMERICA CORP.
  5. Install differential left case (1) and then tighten screws to specified torque.

    "A":  Thread lock cement 99000-32110

    Tightening torque

    Differential case screw (a):  9 N.m (0.9 kg-m, 6.5 lb-ft)

    Fig 5: Installing Differential Left Case
    G01374772Courtesy of SUZUKI OF AMERICA CORP.
  6. Clean and degrease mating surface of drive bevel gear (hypoid gear) (1).
  7. Apply thread lock cement to hatched part of drive bevel gear (1) as shown in the figure.

    "A":  Thread lock cement 99000-32110

    Fig 6: Applying Thread Lock Cement To Drive Bevel Gear
    G01374773Courtesy of SUZUKI OF AMERICA CORP.
  8. Put drive bevel gear (3) on differential case (1) and fasten them with bolts (2) by tightening them to specified torque. Use thread lock cement for bolts (2).
    CAUTION: Use of any other bolts than that specified is prohibited.

    "A":  Thread lock cement 99000-32110

    Tightening torque

    Bevel gear bolts (a):  105 N.m (10.5 kg-m, 76.0 lb-ft)

    Fig 7: Installing Drive Bevel Gear On Differential Case
    G01374774Courtesy of SUZUKI OF AMERICA CORP.
  9. Install special tool to differential case assembly and check that preload is within specification. If preload exceeds specified value, check if foreign matter is caught or gear is damaged.

    Special tool

    (B):  09928-06510

    Side gear preload

    Max:  2.5 N.m (0.25 kg-m, 1.8 lb-ft)

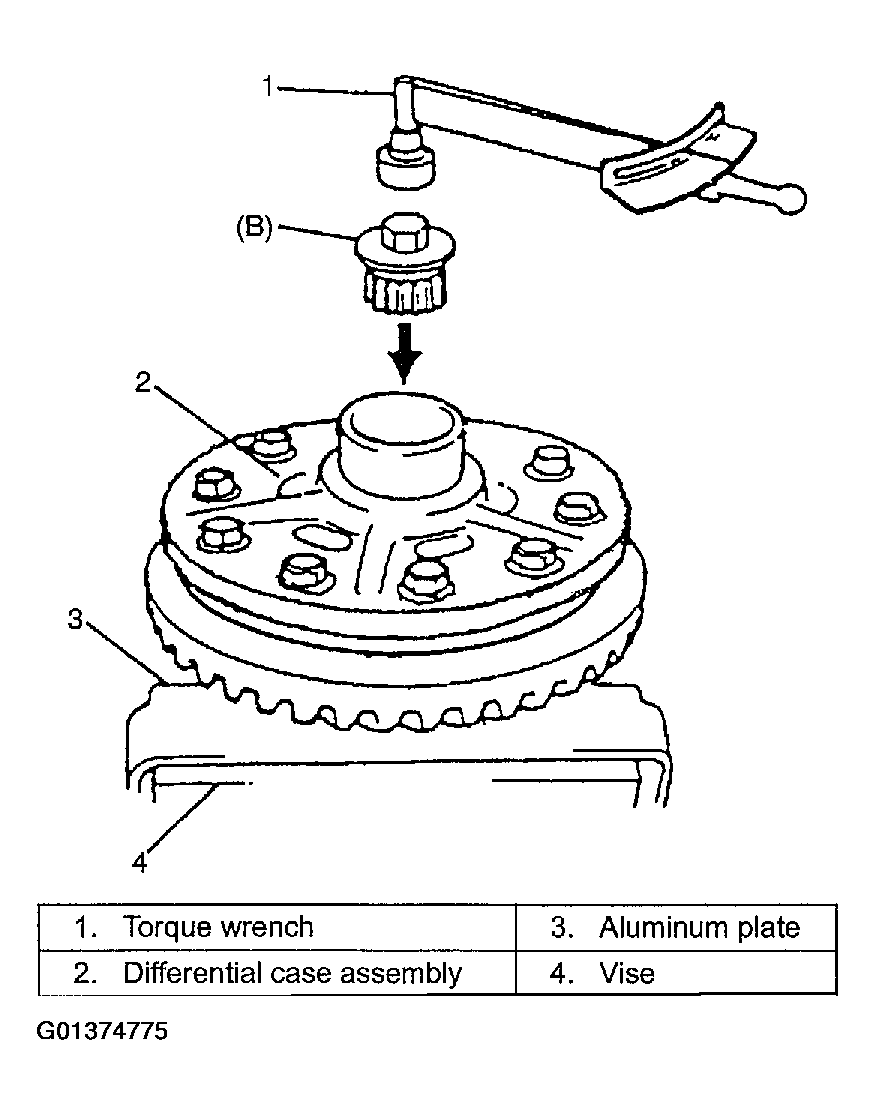

Fig 8: Installing Special Tool To Differential Case Assembly
G01374775Courtesy of SUZUKI OF AMERICA CORP.
