Oil Pump Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install oil pump to crankcase.
Tightening torque
1. Oil pump mounting bolt (short) (c): 27 N.m (2.7 kg-m, 19.5 lb-ft)
2. Oil pump mounting bolt (long) (d): 27 N.m (2.7 kg-m, 19.5 lb-ft)
Fig 1: Installing Oil Pump
Courtesy of SUZUKI OF AMERICA CORP.
Hand-tighten oil pump chain guide bolts (2).
To take up slack of oil pump chain, push center of oil pump chain guide (1) with a force of 0.5 to 0.6 N (50 - 60 g, 0.11 - 0.13 lb) then tighten oil pump chain guide bolts (2) to specified torque.
Tightening torque
1. Oil pump chain guide bolt (e): 11 N.m (1.1 kg-m, 8.0 lb-ft)

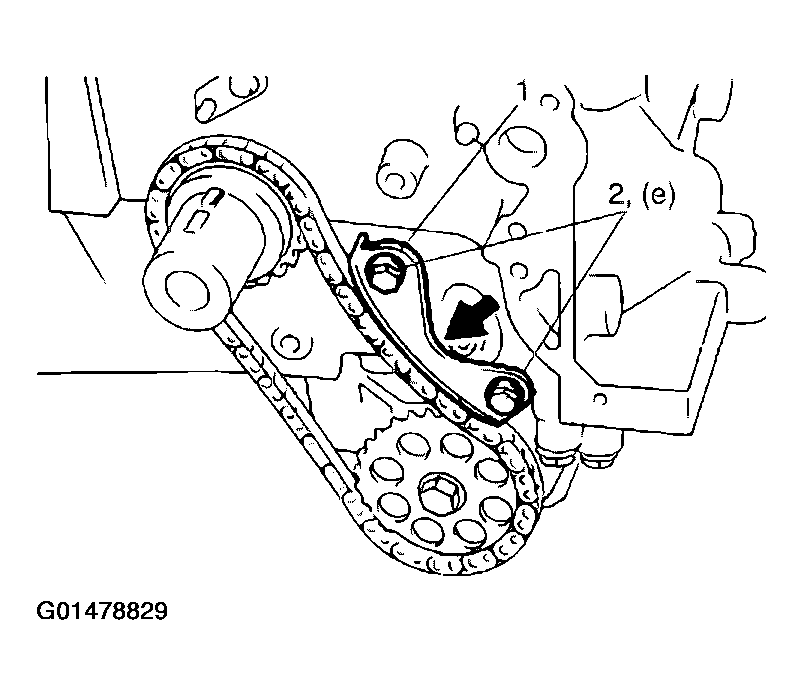

Fig 2: Tightening Oil Pump Chain Guide Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install timing chain cover, oil pump strainer and oil pan.
Refer to TIMING CHAIN COVER & FRONT OIL SEAL for H25 engine or TIMING CHAIN COVER REMOVAL & INSTALLATION for H27 engine and OIL PAN AND OIL PUMP STRAINER REMOVAL AND INSTALLATION .
