Receiver/Dryer Removal and Installation for H27 Engine Model: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Recover refrigerant by using recovery and recycling equipment. Be sure to follow the instruction manual for the equipment. The amount of compressor oil removed must be measured and the same amount added to the system.
Remove front bumper assembly. Refer to FRONT BUMPER COMPONENTS .

Fig 1: Removing Front Bumper
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect coupler from A/C refrigerant (triple) pressure switch (1).

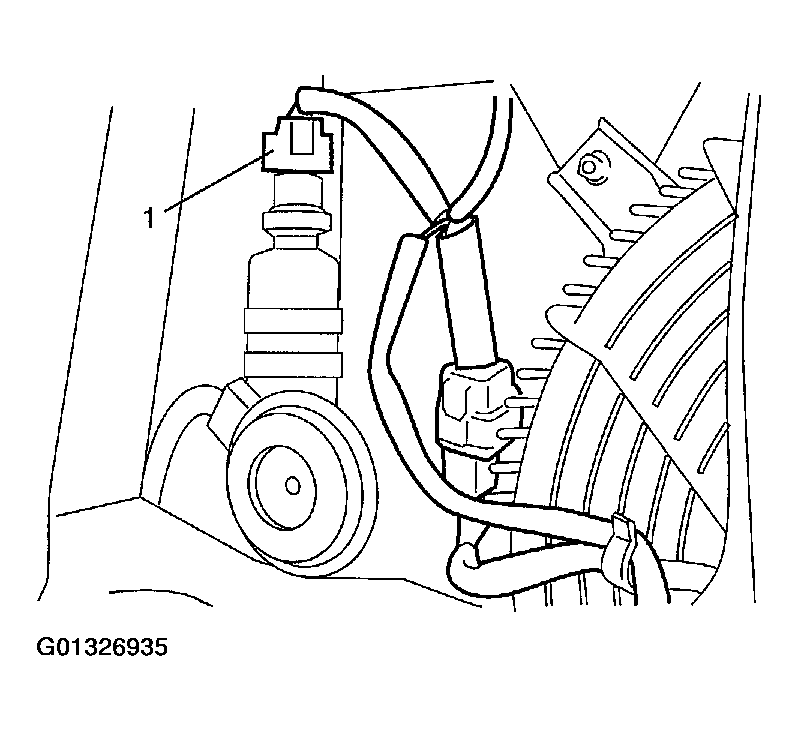

Fig 2: Disconnecting Coupler From A/C Refrigerant (Triple) Pressure Switch
Courtesy of SUZUKI OF AMERICA CORP.
Remove receiver/dryer.
