Rear Blower Motor Switch Inspection for H27 Engine Model

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check rear blower motor switch for each terminal-to-terminal continuity. If check results are not specified, replace rear blower motor switch.

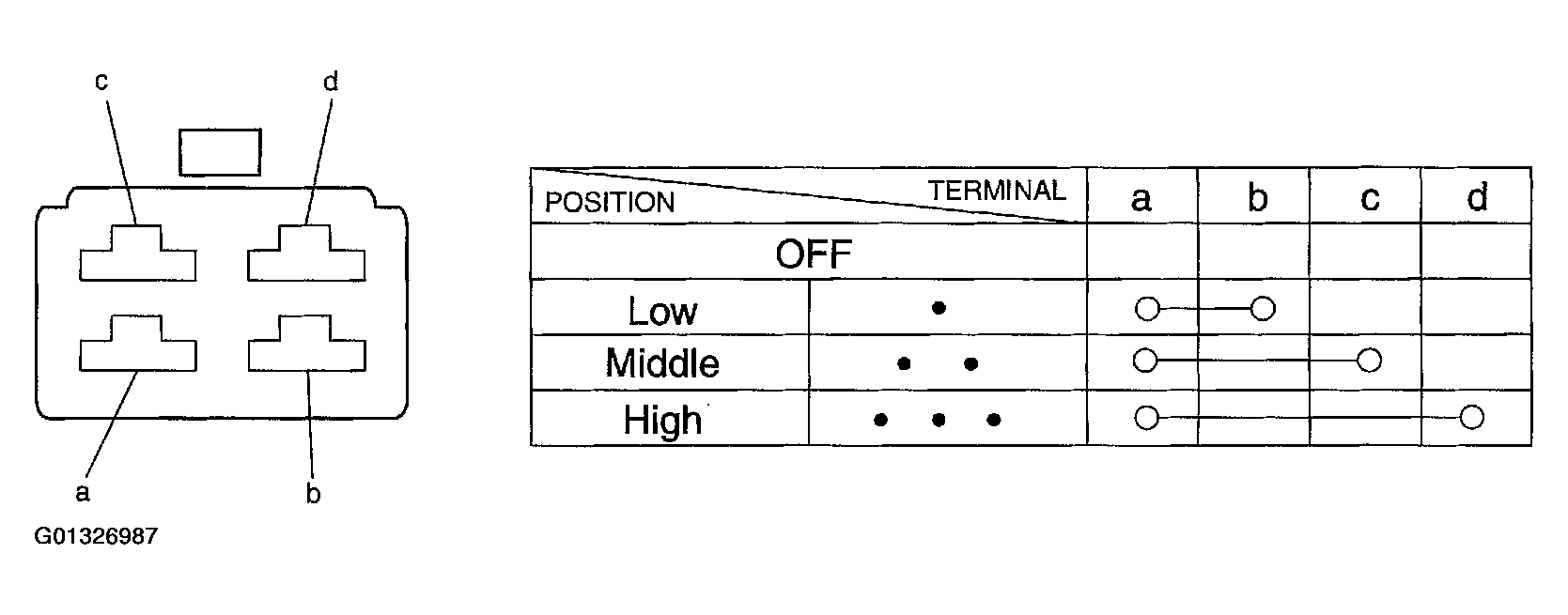

Fig 1: Checking Rear Blower Motor Switch
Courtesy of SUZUKI OF AMERICA CORP.
