Rear Blower Motor Assembly Inspection for H27 Engine Model

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between two terminal as shown.
If check results are no continuity, replace rear blower motor assembly (1).

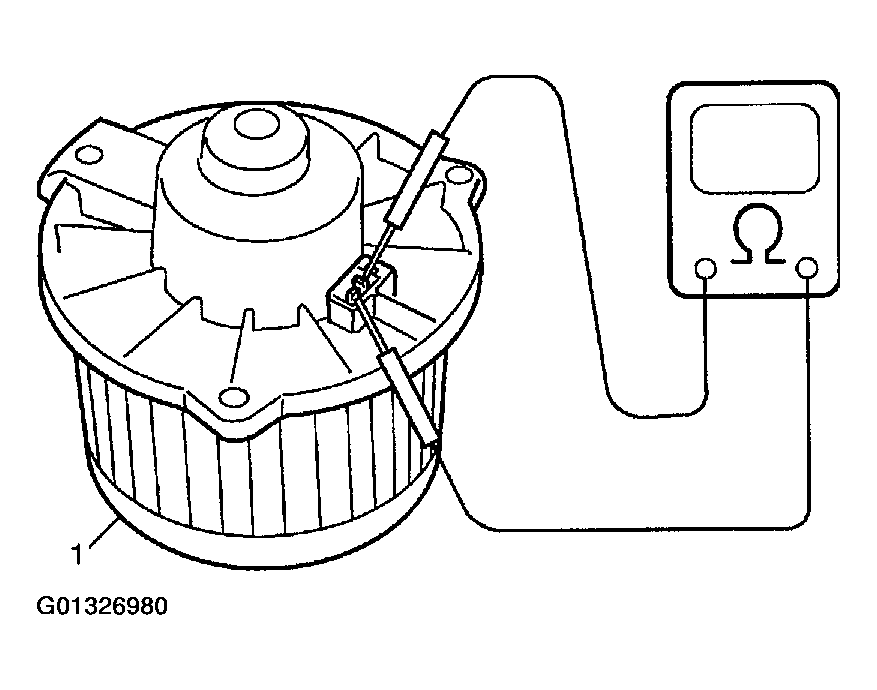

Fig 1: Checking Continuity Between Rear Blower Motor Terminals
Courtesy of SUZUKI OF AMERICA CORP.
Check for operation and current.
1. Fix rear blower motor assembly (1) by using vise.
2. Connect battery to rear blower motor assembly (1) as shown.
3. Check that there is smoothly operates and no noise.
4. Check that ammeter indicates specified current.
If malfunction is found, replace blower motor assembly.

Rear blower fan motor specified current at 12 V: 16 A maximum

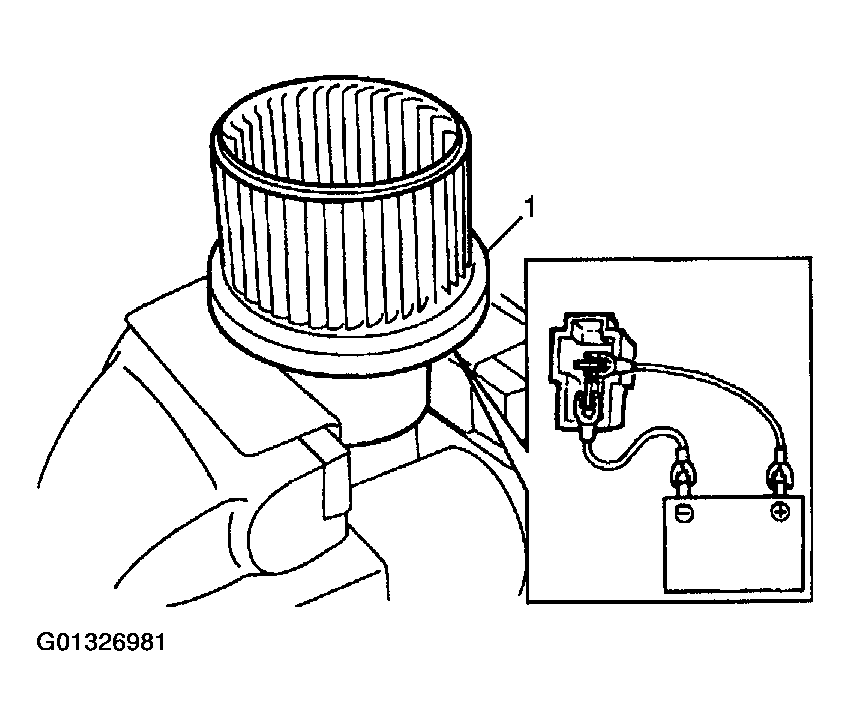

Fig 2: Checking For Operation & Current
Courtesy of SUZUKI OF AMERICA CORP.
