Rear A/C Unit Components for H27 Engine Model

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

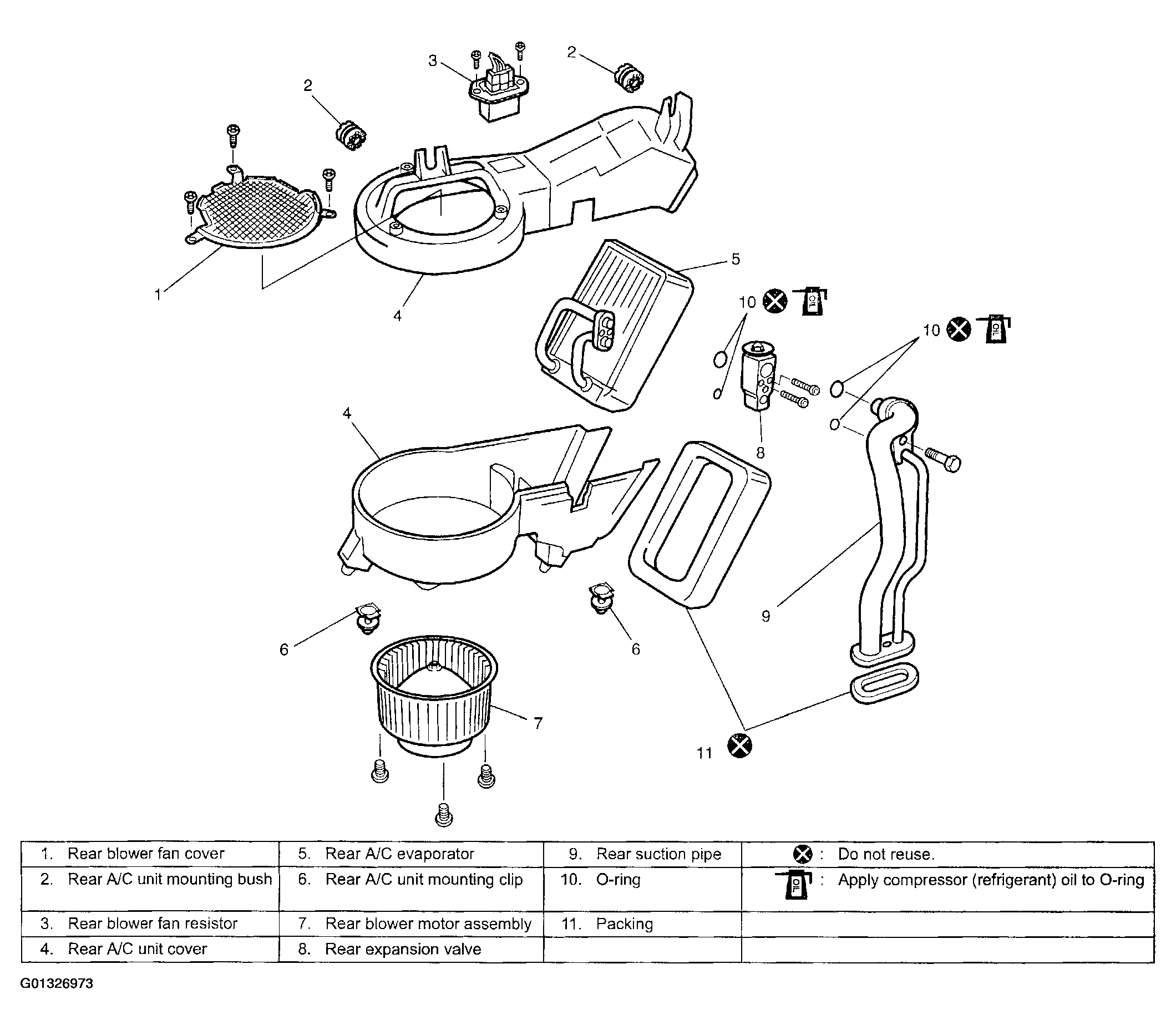

Fig 1: Exploded View Of A/C Unit Components (H27 Engine Model)

Courtesy of SUZUKI OF AMERICA CORP.
