Compressor Assembly Removal and Installation for H27 Engine Model: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Run engine at idle with A/C ON for 10 minutes.
Disconnect negative (-) cable at battery.
Recover refrigerant from refrigeration system using recovery and recycling equipment.
NOTE: The amount of compressor oil at removed must be measured and the same amount must be poured when installing the compressor.
Remove P/S pump. Refer to P/S PUMP REMOVAL AND INSTALLATION .
Remove P/S oil tank, P/S high pressure hose and pipe. Refer to P/S PUMP COMPONENTS .
Disconnect magnet clutch connector.

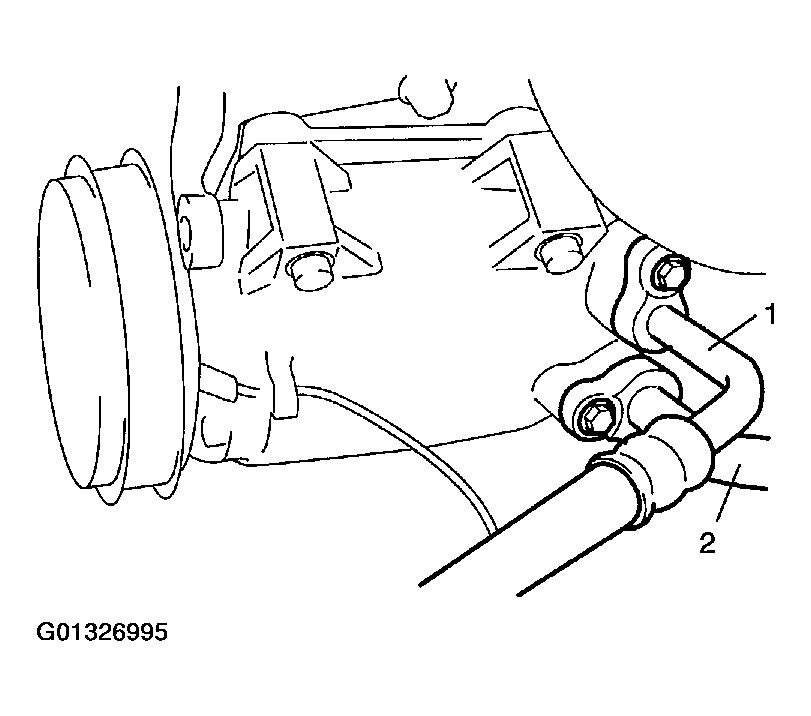

Disconnect suction hose (1) and discharge hose (2) from compressor.
NOTE: Cap open fitting immediately to keep moisture out of system.

Fig 1: Disconnecting Suction & Discharge Hoses
Courtesy of SUZUKI OF AMERICA CORP.

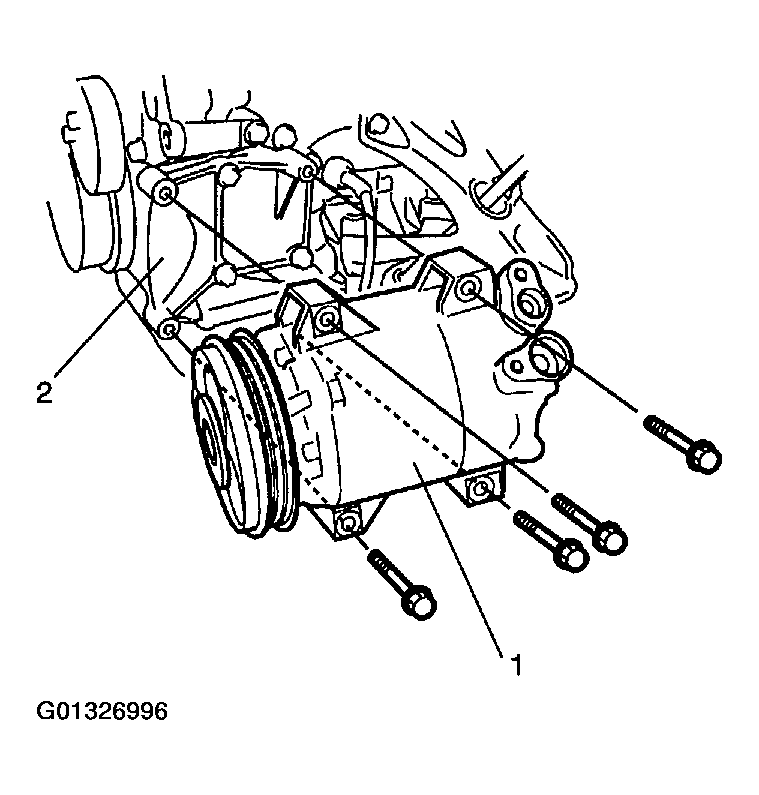

Remove compressor (1) from its mount (2).
NOTE: If compressor assembly is replaced with one, drain oil from compressor. Then, measure its amount.

Fig 2: Removing Compressor
Courtesy of SUZUKI OF AMERICA CORP.
