Compressor Assembly Removal and Installation for H25 Engine Model: Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to use HFC-134a (R-134a) compressor oil.

If compressor was replaced, pour new compressor oil with the same amount as that drained from compressor. Refer to REPLENISHING COMPRESSOR OIL in PRECAUTIONS ON SERVICING A/C SYSTEM .

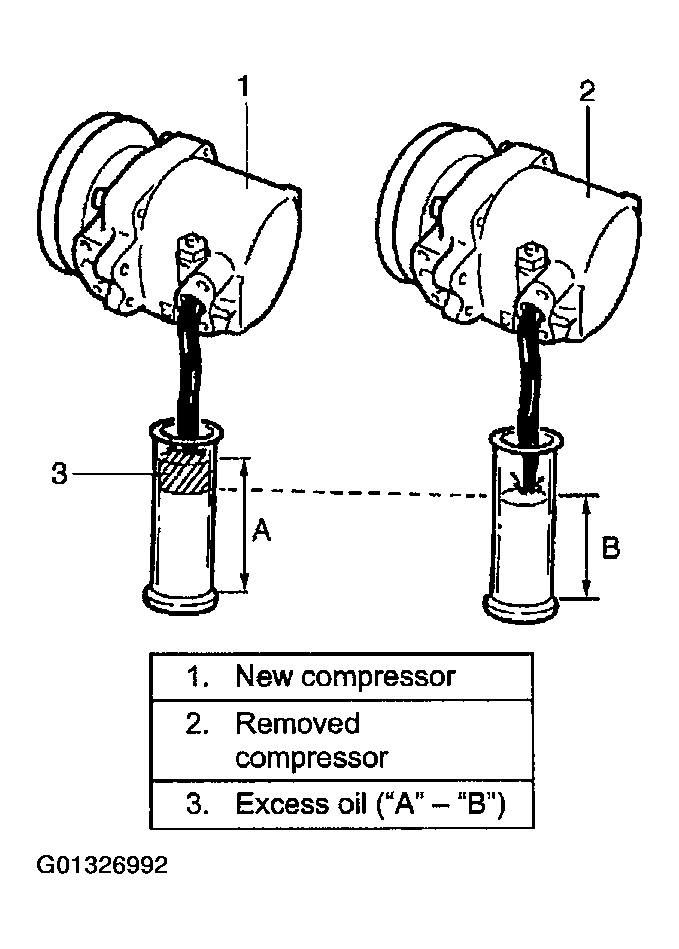

Fig 1: Measuring Compressor Oil
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Compressor assembly supplied from factory is filled up with the following amount of oil.

Amount of oil in compressor: 100 cm³ (100 cc, 6.1 in³ )
Install compressor as follows.
1. Install compressor to its bracket.
  Tightening torque

  Compressor mounting bolt (a): 23 N.m (2.3 kg-m, 17.0 lb-ft)

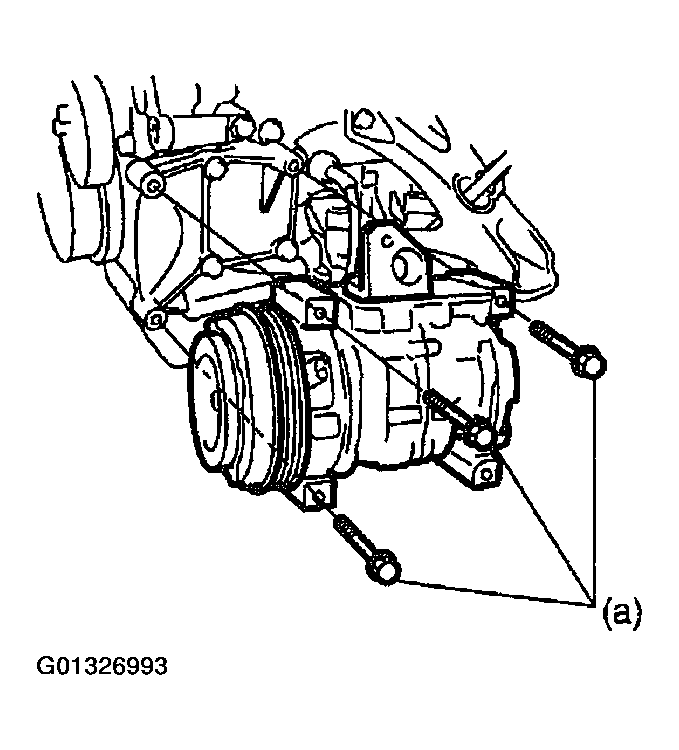

  Fig 2: Installing Compressor
  Courtesy of SUZUKI OF AMERICA CORP.
2. Connect suction and discharge hoses to compressor.
3. Install compressor drive belt. Refer to P/S PUMP DRIVE BELT INSPECTION AND ADJUSTMENT for installation and belt tension.
Fig 3: Installing Compressor Drive Belt
Courtesy of SUZUKI OF AMERICA CORP.
Connect thermal protector lead wire.
Evacuate and charge system according to OPERATION PROCEDURE FOR CHARGING A/C WITH REFRIGERANT .
CAUTION: Be sure to use HFC-134a (R-134a) compressor oil.
