A/C Evaporator Temperature Sensor Inspection
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Check resistance between A/C evaporator temperature sensor terminals. If check result is not in specification, replace A/C evaporator temperature sensor with the new one.

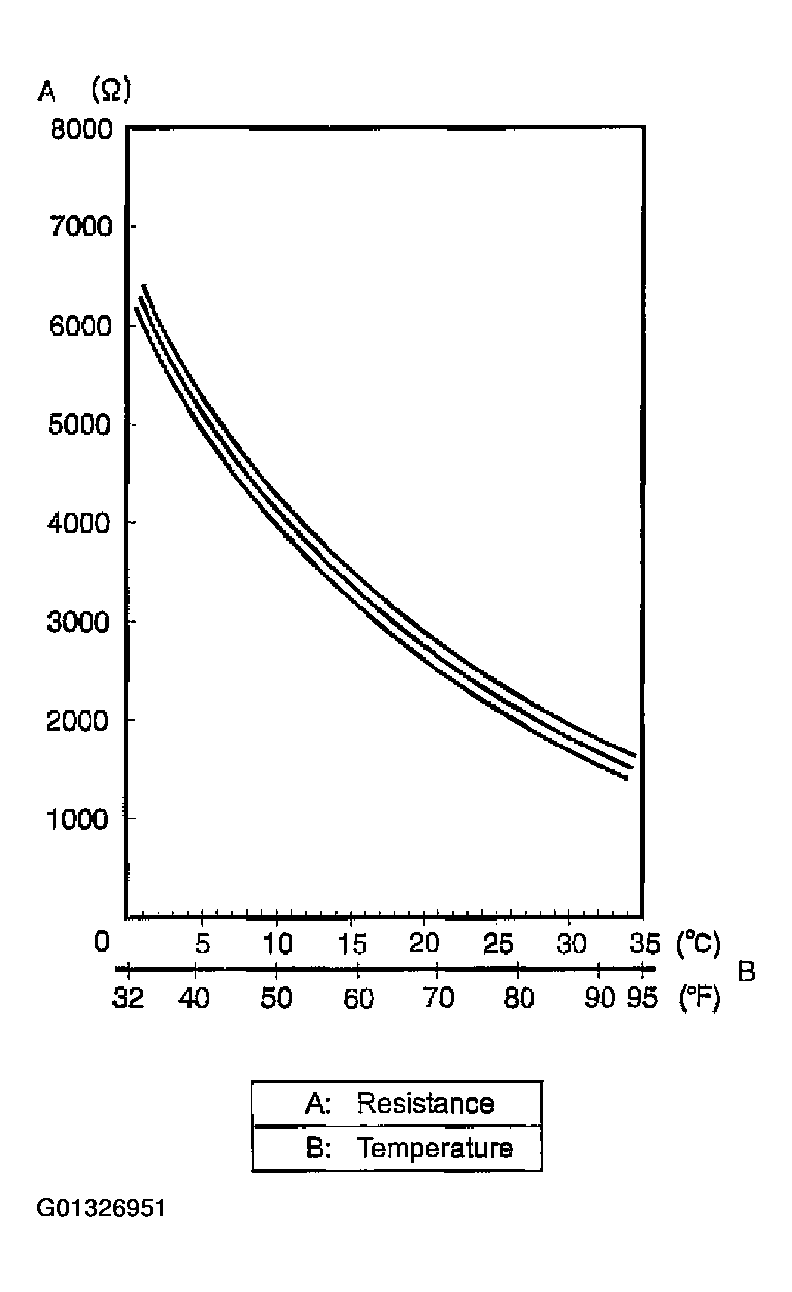

A/C evaporator temperature sensor resistance
6.1 - 7.7 kΩ at 0 °C (32 °F)
2.1 - 2.3 kΩ at 25°C (77 °F)
