A/C Condenser Fan Assembly Inspection for H27 Engine Model

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between each terminals. If check results are continuity, proceed to the next operation check. If not, replace it with new one.

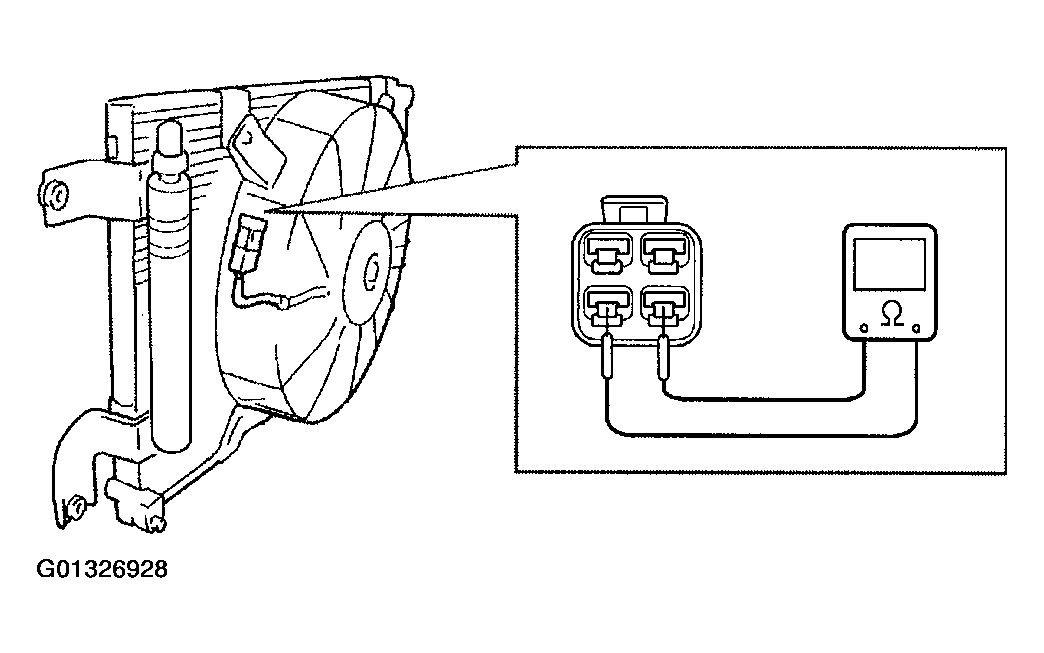

Fig 1: Checking Continuity Between Terminals
Courtesy of SUZUKI OF AMERICA CORP.
Connect battery to condenser fan motor as shown in figure, and then check if it operates smoothly and fan speed varies.
If it does not operate smoothly, replace it with new one.

Reference specified consumption current at 12 V

LOW: 6.0 - 8.0 A

HIGH: 9.0 - 11.0 A

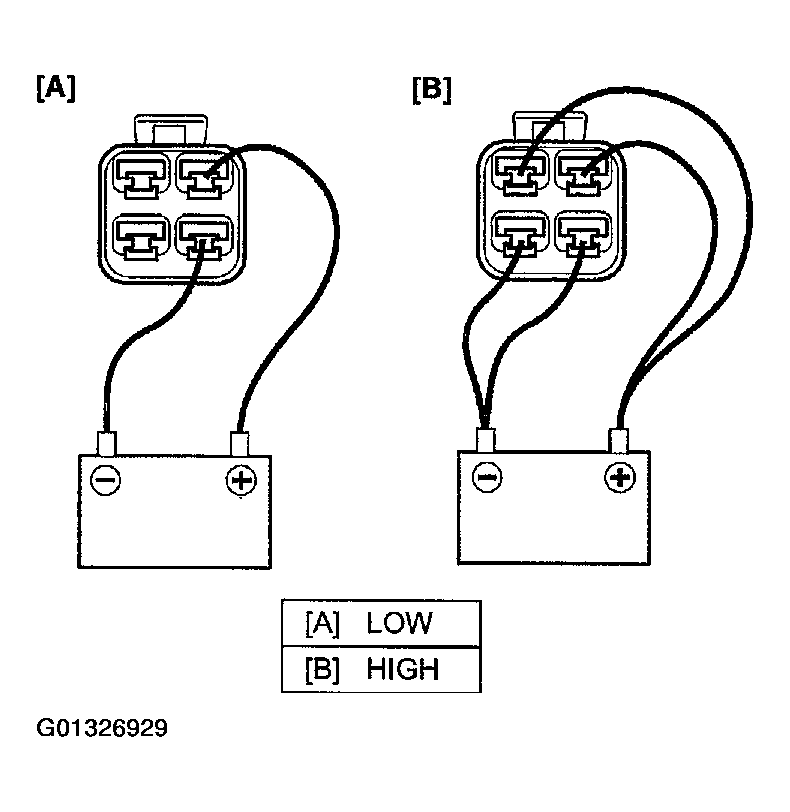

Fig 2: Connecting Battery To Condenser Fan Motor
Courtesy of SUZUKI OF AMERICA CORP.
