A/C Condenser Fan Assembly Inspection for H25 Engine Model

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminal to terminal as shown in figure.
If check results are continuity, proceed to next operation check. If not, replace.

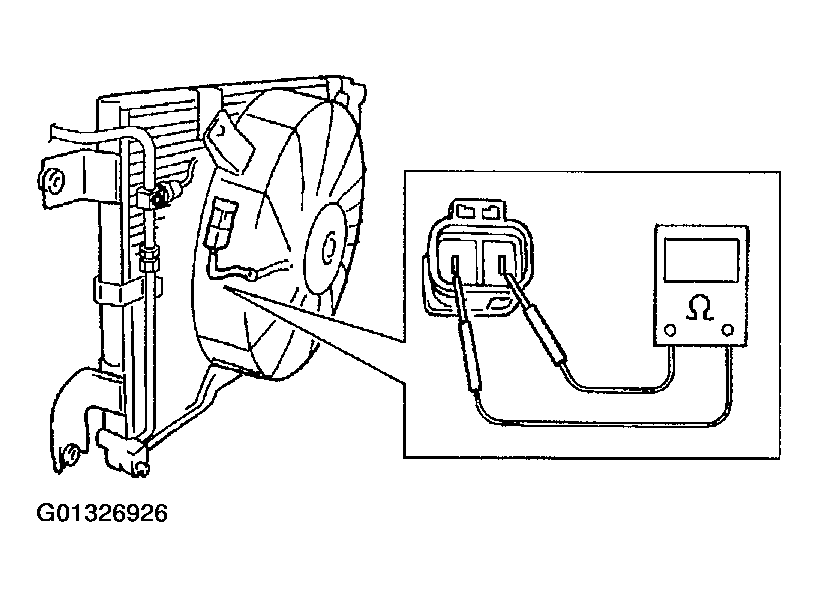

Fig 1: Checking Continuity Between Terminals
Courtesy of SUZUKI OF AMERICA CORP.
Connect battery to condenser fan motor as shown, then check that the condenser fan motor operates smoothly.
Reference specified consumption current for A/C condenser fan: 8 - 12 A at 12 V

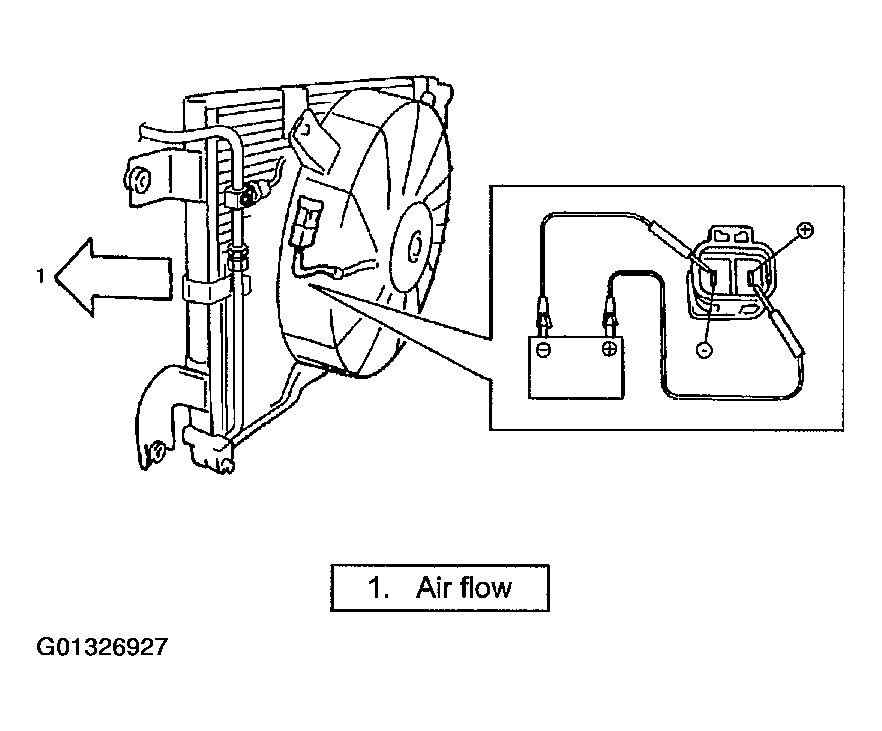

Fig 2: Connecting Battery To Condenser Fan Motor
Courtesy of SUZUKI OF AMERICA CORP.
