When replacing compressor

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Compressor oil is sealed in each new compressor (1) by the amount required for air conditioner cycle. Therefore, when using a new compressor for replacement, drain oil from it by the amount calculated as follows.

"C" = "A" - "B"

"C": Amount of oil to be drained

"A": Amount of oil sealed in a new compressor

"B": Amount of oil remaining in removed compressor

NOTE: Compressor assembly supplied from factory is filled up with the following amount of oil.

Oil: 99000-27080 (H25 engine model)

Oil: 99000-99022-00E (H27 engine model)

Amount of oil in new compressor

H25 engine model: 100 cm³ (100 cc)

H27 engine model with dual A/C: 200 cm³ (200 cc)

H27 engine model with single A/C: 150 cm³ (150 cc)

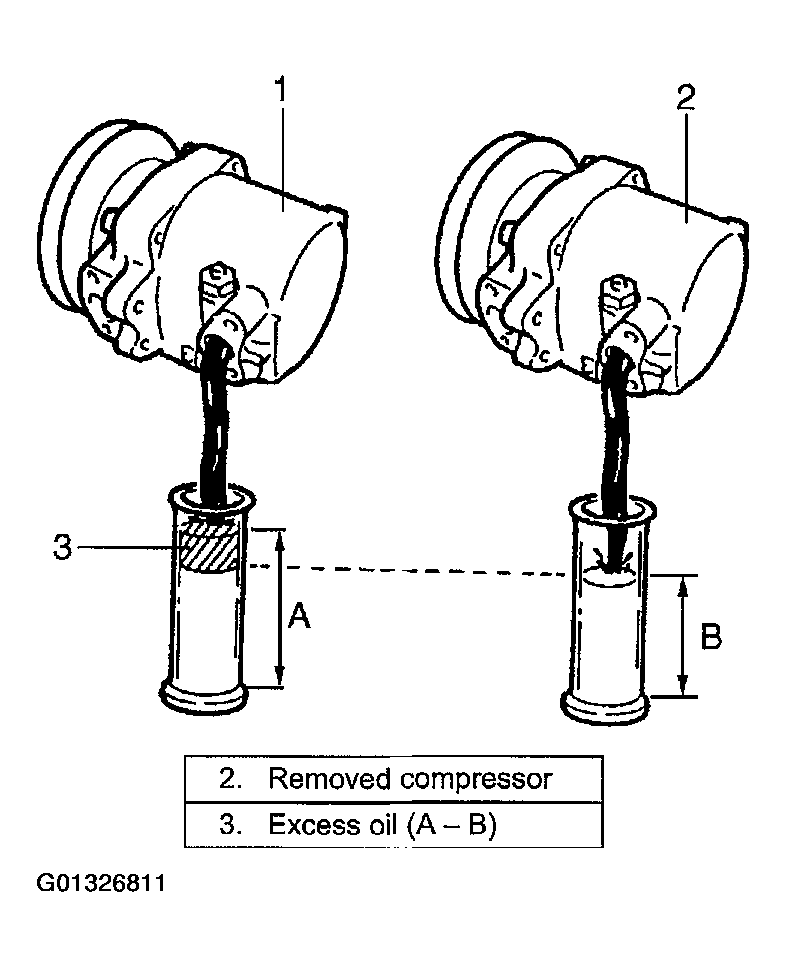

Fig 1: Measuring Oil

Courtesy of SUZUKI OF AMERICA CORP.

Amount of compressor oil to be replenished after part replacement

Evaporator: 50 cm³ (50 cc)

Rear evaporator for H27 engine model with dual A/C: 50 cm³ (50 cc)

Condenser for H25 engine model: 15 cm³ (15 cc)

Condenser for H27 engine model: 30 cm³ (30 cc)

Receiver/dryer for H25 engine model: 20 cm³ (20 cc)

Receiver/dryer for H27 engine model: 10 cm³ (10 cc)

Hoses: 10 cm³ (10 cc)

Pipes: 10 cm³ (10 cc)
