A/C Evaporator Temperature Sensor

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

The A/C evaporator temperature sensor (1) is a temperature sensor to sense the temperature of air discharged from evaporator.

Fig 1: Identifying A/C Evaporator Temperature Sensor

Courtesy of SUZUKI OF AMERICA CORP.

The electrical characteristic is shown.

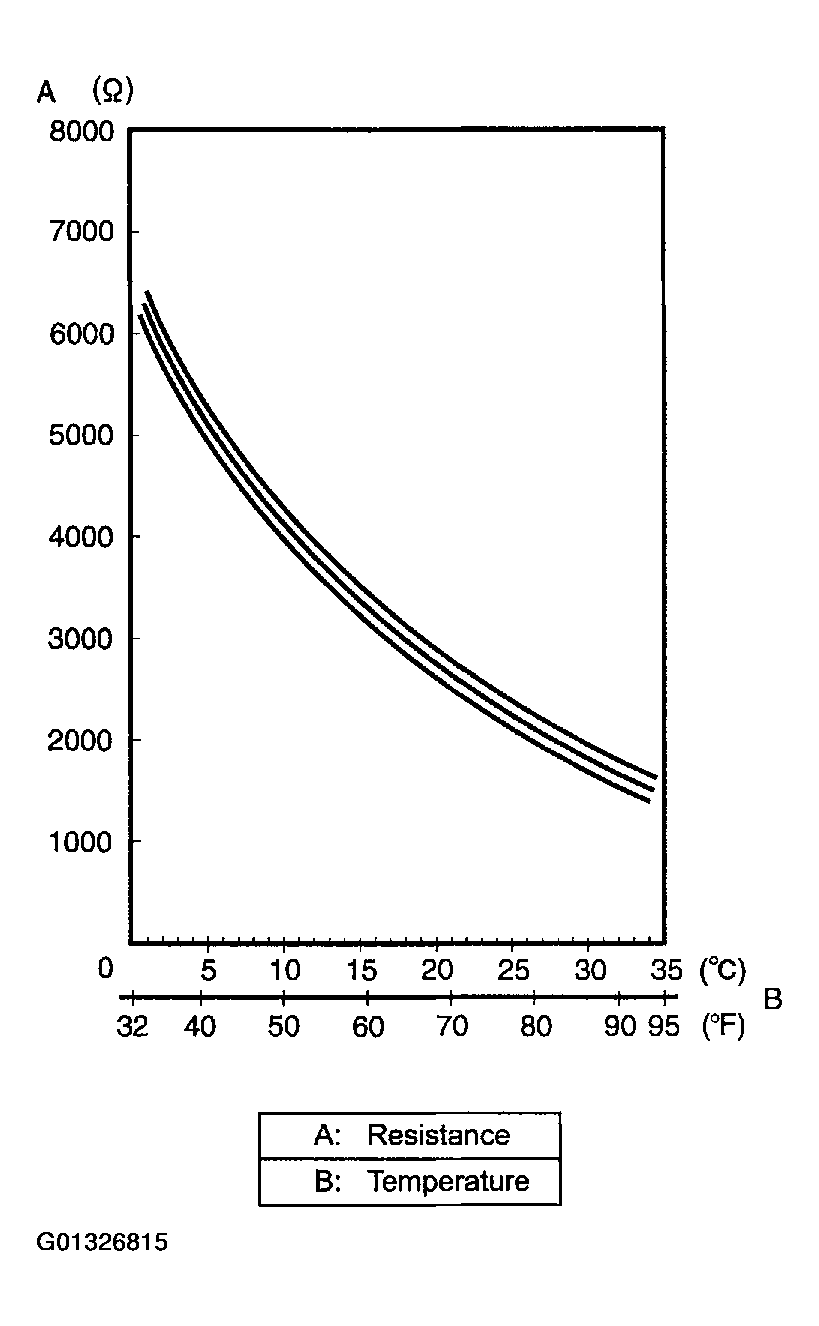

Fig 2: Identifying Electrical Characteristic

Courtesy of SUZUKI OF AMERICA CORP.

When temperature is lower than specified, A/C controller makes magnet clutch turn off to prevent evaporator from frosting.
