Scan Tool Data: Notes

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

As the data values given below are standard values estimated on the basis of values obtained from the normally operating vehicles by using a scan tool, use them as reference values. Even when the vehicles are in good condition, there may be cases where the checked values do not fall within each specifies data range. Therefore, judgement as abnormal should not be made by checking with these data alone.

NOTE:

This data is for vehicle with automatic air conditioning system.
This data is for vehicle with manual air conditioning system.

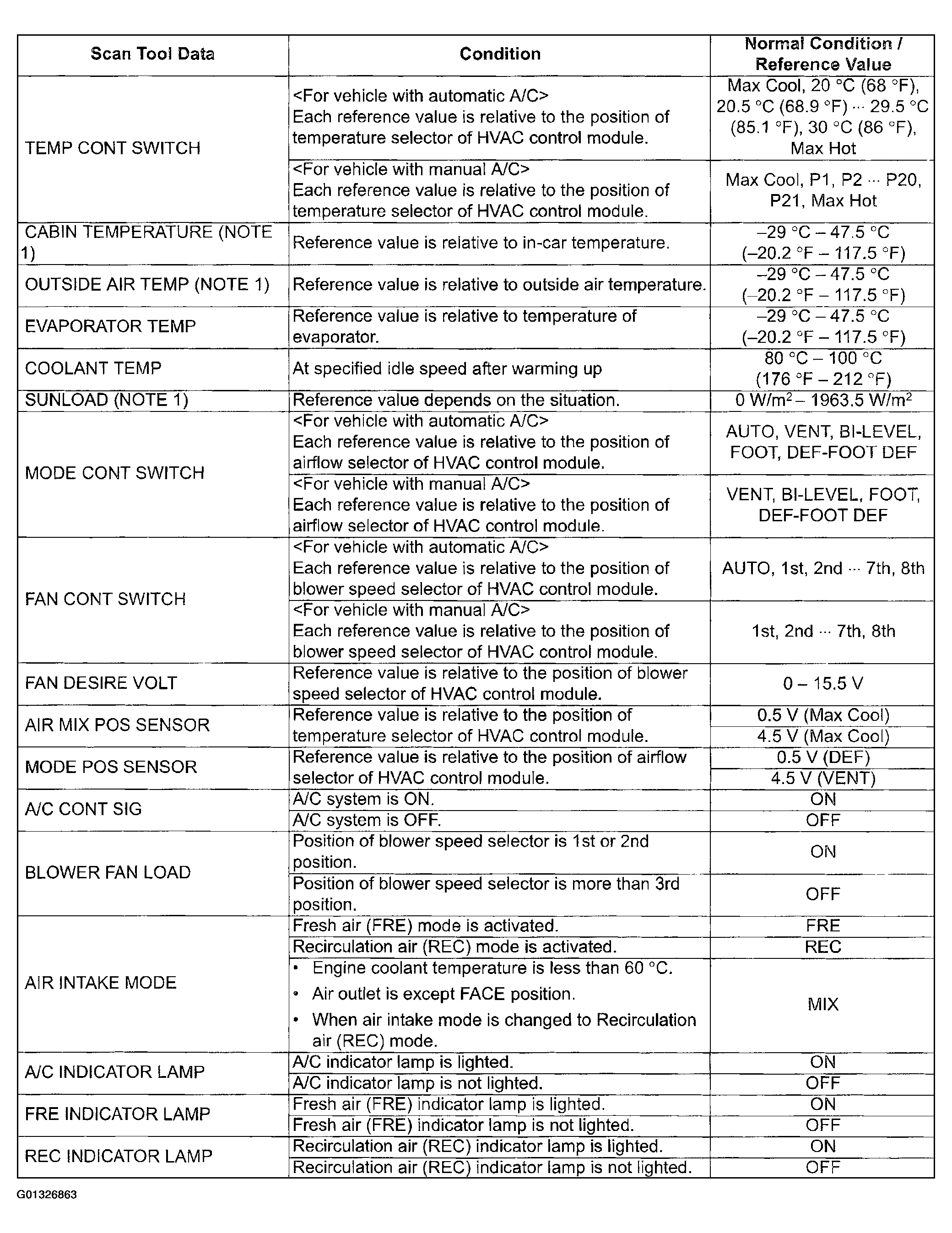

Fig 1: Scan Tool Data Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

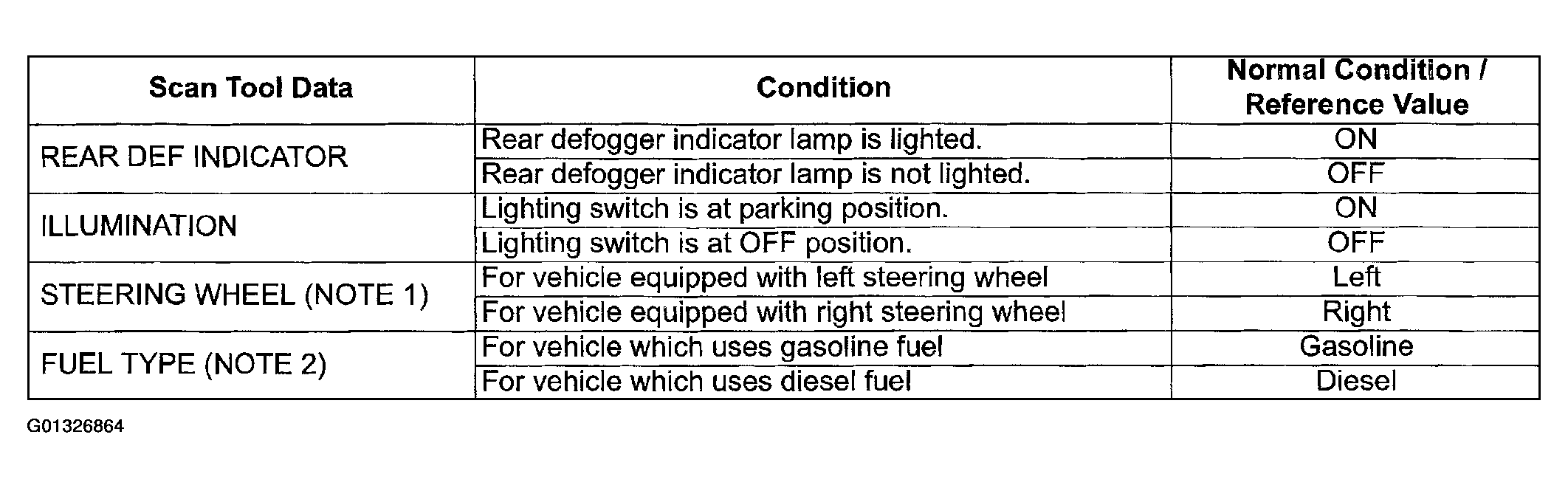

Fig 2: Scan Tool Data Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
