DTC Table

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to perform AIR CONDITIONING SYSTEM CHECK before starting diagnosis.

NOTE:

Item with asterisk (*) in "DTC No." column is for vehicles with automatic air conditioning system.
If no malfunction is detected, A/C indicator lamp and REC indicator lamp flash simultaneously.

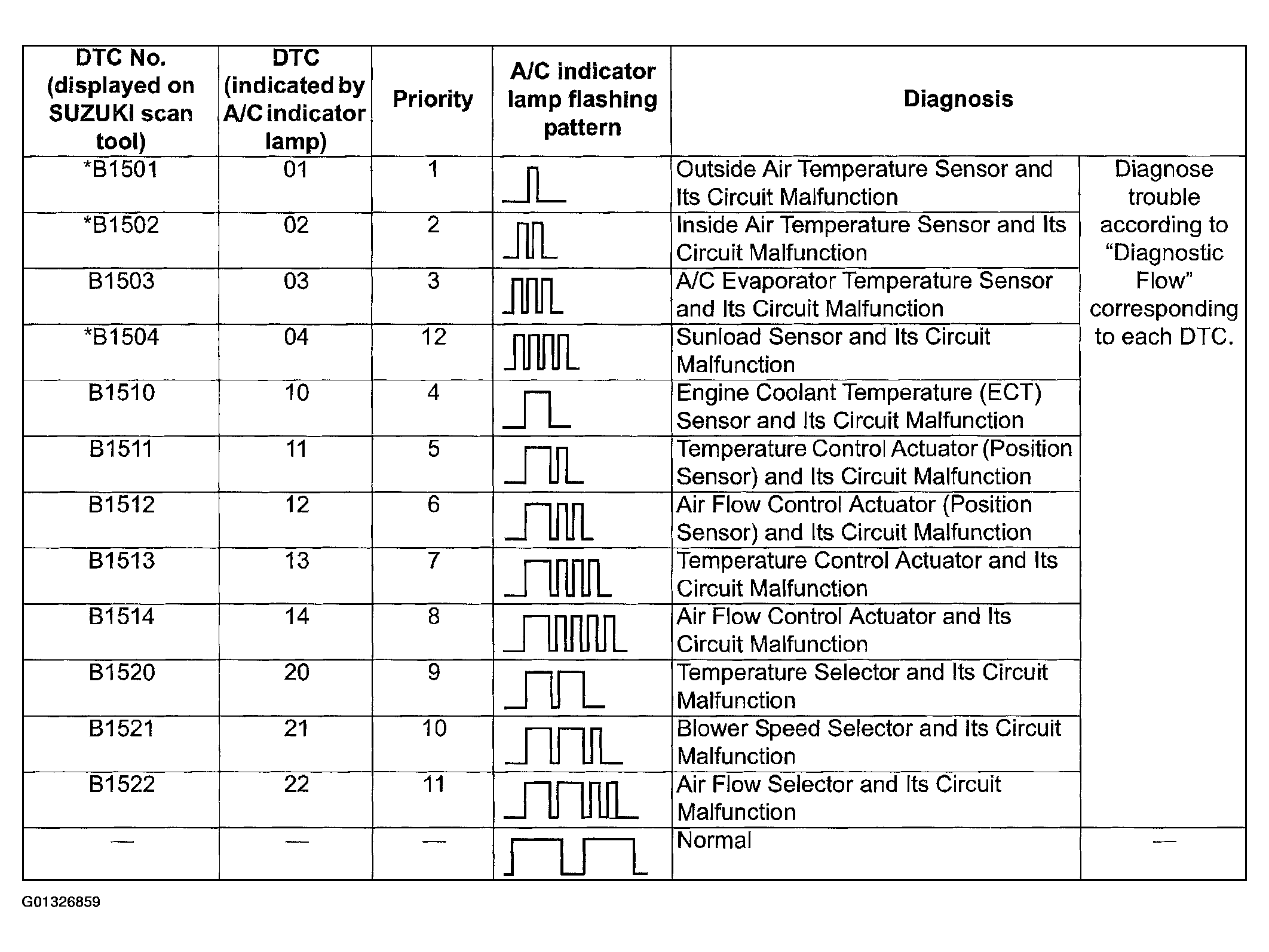

Fig 1: DTC Table

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: REC Indicator Lamp Flashing Pattern Chart

Courtesy of SUZUKI OF AMERICA CORP.

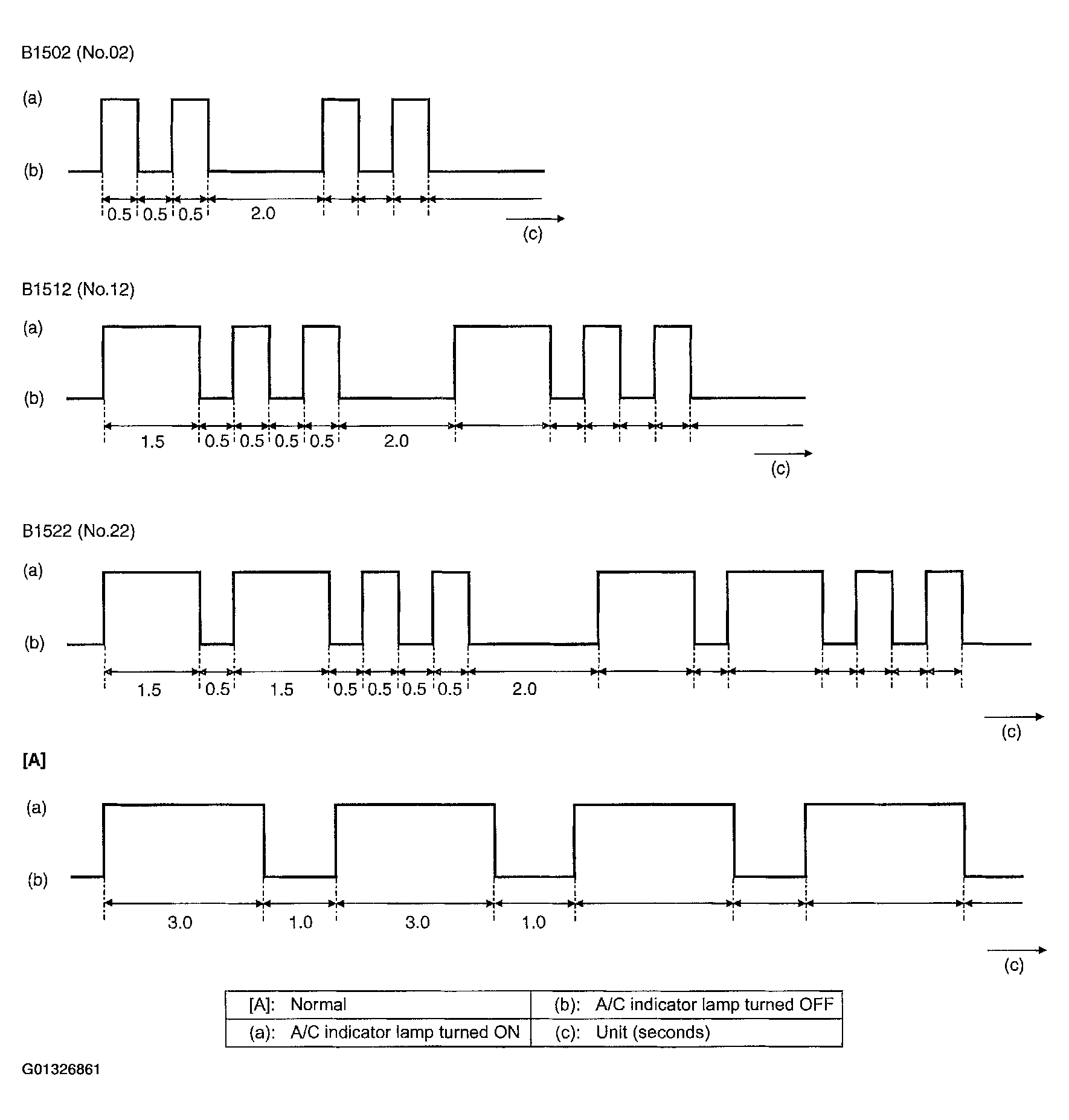

Fig 3: Indicator Lamp Flashing Pattern Example

Courtesy of SUZUKI OF AMERICA CORP.
