Not Using SUZUKI Scan Tool
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

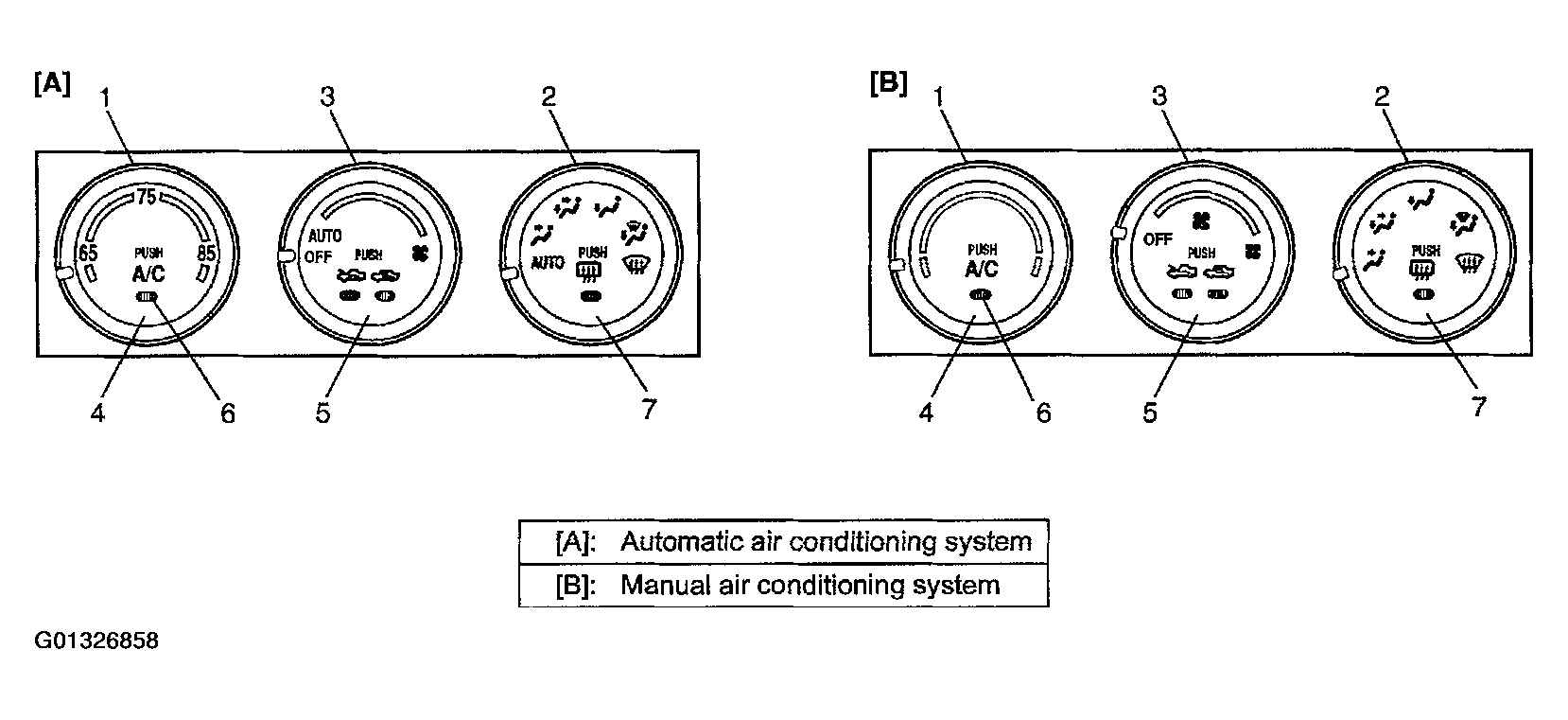

- Check A/C switch indicator (6) for operation referring to A/C INDICATOR LAMP CHECK .
- Light over sunload sensor vertically with an incandescent lamp of approx. 100 W apart from about 100 mm (3.94 in.) position.
- Set the following selectors to specified positions respectively.
- Temperature selector (1): Max cool position
- Air flow selector (2): "AUTO (automatic air conditioning system) or "VENT" (manual air conditioning system) position.
- Blower speed selector (3): "OFF" position.
- Turn ignition switch ON position under the conditions set at Step 2 and 3 by pushing the A/C switch (4) and air intake switch (5) at the same time.
- Push A/C switch and air intake switch at the same time.
- Make sure that rear defogger lamp is lighted.
- Push rear defogger switch (7) at 3 seconds or more.
- After completing the clearance, turn ignition switch OFF position.
- Perform DTC CHECK , and confirm if normal DTC is displayed and if any other DTC is detected.
